Cochlear implant-related speech processing may diminish the advantage of exposure to infant-directed speech

A. Infant-directed speech and language learning

Caregivers around the world modify their speaking style from adult-directed speech (ADS) to infant-directed speech (IDS) when talking to infants (Fernald & Kuhl, 1987; Snow, 1977). Greater exposure to IDS and some aspects of its acoustic and linguistic properties facilitates language learning in children with normal hearing (NH) (Cristia & Seidl, 2014; Liu, Kuhl, & Tsao, 2003; Song, Demuth, & Morgan, 2010; Trainor, Austin, & Desjardins, 2000; Weisleder & Fernald, 2013). The supportive role of IDS in infants’ language learning occurs through several pathways, such as directing and holding infants’ attention to speech (Fernald, 1985, 1989; Kitamura, Thanavishuth, Burnham, & Luksaneeyanawin, 2001; Kuhl et al., 1997; Schachner & Hannon, 2011; Wang, Bergeson, & Houston, 2017, 2018; Werker, Pegg, & McLeod, 1994), while making speech more clear by providing more salient cues for speech discrimination (Karzon, 1985), word segmentation (Singh & Nestor, 2009), speech segmentation (Thiessen, Hill, & Saffran, 2005), and word learning (Ma, Golinkoff, Houston, & Hirsh-Pasek, 2011). Taken together, these studies demonstrate the supportive role of IDS in infants’ early language learning. However, it is not yet clear how cochlear implants may affect acoustic properties of IDS, and its supportive role in language learning. The present study aims to investigate the effects of simulated CI processing on acoustic information pertaining to distinguishing and recognizing words in IDS versus ADS.

B. Infants’ attention to IDS

In listening to speech, infants with NH and those with CIs demonstrate increased attention to IDS compared to ADS (The ManyBabies Consortium, 2020; Cooper, Abraham, Berman, & Staska, 1997; Fernald, 1985; Wang et al., 2017; Wang, Bergeson, et al., 2018; Werker & McLeod, 1989; Werker et al., 1994). This effect of IDS on attention begins very early as observed in newborns and infants as young as 4 months old (Cooper & Aslin, 1990; Fernald, 1985; Werker & McLeod, 1989), demonstrating the capability of infants in using subtle acoustic information to distinguish IDS from ADS while having acquired only minimal linguistic knowledge. Multiple acoustic-phonetic cues have been identified as potentially supporting infants’ robust preference for IDS over ADS, such as higher pitch (Cooper & Aslin, 1990; Fernald, 1989), greater pitch fluctuation (Fernald & Simon, 1984), slower speaking rate (Leong, Kalashnikova, Burnham, & Goswami, 2014; Narayan & McDermott, 2016; Song et al., 2010), and an expanded vowel space (Burnham et al., 2015) in IDS compared to ADS. These distinctive acoustic-phonetic cues are manifested in spectro-temporal representations of caregivers’ speech, which are actively incorporated through infants’ highly sensitive auditory systems to recognize IDS as distinct from ADS (Kuhl, 2004; Maye, Werker, & Gerken, 2002; McMurray & Aslin, 2005; Telkemeyer et al., 2009). Although IDS over ADS preference was observed in infants with CIs (Wang et al., 2017), it is still not clear how they are different from their peers with NH in terms of access to spectral information involved in distinguishing IDS from ADS. Infants with CIs may face difficulties in resolving distinctive acoustic information toward performing this task effectively, leading potentially to a disruption in the developmental time course of CI infants’ attention to IDS and delayed language development, as compared to that of NH infants. These considerations suggest a benefit of examining how CI-related speech processing may affect acoustic distinctiveness and intelligibility of IDS compared with ADS, and how this acoustic distinctiveness and intelligibility may differ as a function of individual talkers’ speech patterns.

C. CI processing and acoustic distinction between IDS and ADS

Infants with CIs have access to a spectro-temporally degraded representation of speech in their language environments, due to limitations of electric stimulation to faithfully transmit this information to the auditory nerve. The limited number of active channels and the broad current spread, that causes the interaction between channels, lead to a degraded representation of spectral and temporal information in speech (Baskent & Gaudrain, 2016; Svirsky, 2017). For instance, Friesen et al. (2001) showed that speech recognition in listeners with NH improved by increasing the number of spectral channels in vocoded speech, highlighting the effect of spectral resolution in recognition of speech in listeners with CIs (Baskent & Gaudrain, 2016; Friesen et al., 2001; Fu, Chinchilla, Nogaki, & Galvin, 2005; Fu & Nogaki, 2005; H. Luo & Poeppel, 2007; Shannon, Zeng, Kamath, Wygonski, & Ekelid, 1995; Svirsky, 2017). Temporal resolution is also reduced in CIs and it is mainly limited to temporal-envelope cues, which disrupts faithful transmission of temporal fine-structure in speech to auditory nerves (Rubinstein, 2004; Svirsky, 2017). This reduced spectro-temporal resolution may negatively affect infants’ access to segmental and suprasegmental (i.e., prosodic) features of IDS.

Transmission of multiple speech cues are negatively affected by the limited resolution of CIs, including pitch (Mehta & Oxenham, 2017; Qin & Oxenham, 2005; Svirsky, 2017), timbre (Kong, Mullangi, Marozeau, & Epstein, 2011), and melody (Mehta & Oxenham, 2017; Zeng, Tang, & Lu, 2014) in talkers’ speech. These cues have been recognized as major attributes that distinguish IDS from ADS (Fernald, 1989; Fernald & Simon, 1984; Wang et al., 2017). For example, caregivers’ pitch is identified as an important perceptual cue for children’s robust attention in listening to IDS (Fernald, 1985; Piazza, Iordan, & Lew-Williams, 2017) and was also recognized as an important cue in distinguishing IDS from ADS (Fernald & Kuhl, 1987). Higher mean pitch and wider pitch range are recognized as prosodic modifications that signal speech directed to infants as compared to adults (Garnica, 1977; Narayan & McDermott, 2016). Talkers’ pitch further contributes to lexical segmentation of speech in listeners with CIs (Spitzer, Liss, Spahr, Dorman, & Lansford, 2009), a task critical for word learning. Recognition of emotion from speech is another important aspect in recognizing and processing IDS (Trainor et al., 2000), which relies heavily on perceiving pitch contour and pitch fluctuation in caregivers’ speech. These cues are poorly perceived by listeners with CIs. For example, listeners with CIs performed worse in emotion recognition as the number of spectral channels in vocoded speech was decreased (Luo, Fu, & Galvin, 2007). Another instance of degraded representation of speech cues related to IDS is poor perception of melodic pitch that is shown to be negatively affected by reducing the number of spectral channels (Kong, Cruz, Jones, & Zeng, 2004). These findings suggest that children with CIs have probably partial access to spectro-temporal cues in speech that greatly contribute to the distinctiveness of IDS and ADS (e.g., pitch and intonation). This limited access to speech cues that signal IDS may interfere with the connection between recognizing and listening to IDS and developing better language skills. Therefore, it is important to understand how CI may impact the acoustic distinction between IDS and ADS - a major knowledge gap that the present study aimed to address based on acoustic and computational analysis of simulated CI speech.

D. Intelligibility of IDS through CI

Another possible way IDS may foster language learning is by making speech more intelligible. Prior studies showed evidence that IDS may provide acoustic cues that assist infants for parsing linguistic units in speech. Karzon (1985) showed that the exaggerated suprasegmental features of IDS may provide supportive perceptual cues for syllabification of multisyllabic sequences. In another study, infants had better long-term word recognition when the words were presented in IDS compared to ADS (Singh & Nestor, 2009). It was further shown that IDS facilitates word segmentation (Thiessen et al., 2005). Although evidence on intelligibility benefits of IDS over ADS have somehow been contradictory at the level of segmental speech cues (e.g., Kuhl et al., 1997; McMurray, Kovack-Lesh, Goodwin, & McEchron, 2013), there might be an intelligibility benefit associated with other properties of IDS (e.g., prosodic cues), similar to the effects observed in close analogues of a “clear speech” register (Bradlow, Kraus, & Hayes, 2003; S. H. Ferguson & Kewley-Port, 2007). Caregivers’ modification of speaking style from ADS to IDS impacts aspects of speech such as pitch contour and speech rate, which have been shown to be strong predictors of speech clarity and intelligibility (Bradlow et al., 2003; Cutler, Dahan, & van Donselaar, 1997; Ferguson & Poore, 2010; Ferguson & Quené, 2014; Spitzer, Liss, & Mattys, 2007; Watson & Schlauch, 2008). Different choices of speaking style often impact speech rate, where a slower rate is thought to contribute to enhanced intelligibility of clear speech compared to conversational speech both in typical listeners (Ferguson et al., 2010) and recipients of CIs (Li et al., 2011; Zanto, Hennigan, Östberg, Clapp, & Gazzaley, 2013).

Limited spectral resolution of the cochlear implant device affects the quality by which listeners with CIs receive speech cues (Croghan, Duran, & Smith, 2017; Jain & Vipin Ghosh, 2018; Peng, Hess, Saffran, Edwards, & Litovsky, 2019; Qin & Oxenham, 2005), which may negatively impact CI users’ ability to recognize words and phonemes, especially children (Grieco-calub, Saffran, & Litovsky, 2010; Peng et al., 2019). Therefore, any likely beneficial role of IDS in improvement of speech intelligibility is prone to change when caregivers’ speech is perceived through a CI device. Prior studies have shown that performance of listeners with CIs is considerably poorer than listeners with NH in understanding sentences spoken with relatively higher rate (Zanto et al., 2013), which is an acoustic dimension signaling distinction of IDS from ADS (i.e., slower speaking rate in IDS compared to ADS). Variation of fundamental frequency (F₀) is another acoustic dimension of the IDS-vs-ADS distinction that contributes to speech recognition (Spitzer, Liss, Spahr, Dorman, & Lansford, 2009; Spitzer et al., 2007). Findings on the effect of these acoustic properties on intelligibility of caregivers’ speech is still controversial, and little is known about the effects of CI speech processing on intelligibility of caregivers’ speech in ADS and IDS conditions. The present study uses computational modeling approaches to address whether IDS is beneficial for intelligibility improvement and how this effect may be compromised depending on listeners’ hearing status (NH vs. CI).

E. Individual differences in acoustic implementation of IDS and speech intelligibility

Listeners’ familiarity with the range of variability in voice of individual talkers is important for robust identification and recognition of individuals’ voices (Lavan, Burton, Scott, & McGettigan, 2019; Souza, Gehani, Wright, & McCloy, 2013). Caregiver-specific acoustic modification is important for effective caregiver-infant interaction and significantly contributes to infants’ recognition of caregivers’ voices both before and after birth (Beauchemin et al., 2011; Kisilevsky et al., 2003), as well as for neural development of infants’ auditory cortices (Webb, Heller, Benson, & Lahav, 2015). Singh (2008) showed that exposure to IDS with relatively higher variability in vocal affects facilitates word recognition in infants by forming a relatively wider and more generalizable lexical category, highlighting the supportive role of exposure to a wide range of ADS-to-IDS acoustic variation in effective processing of caregivers’ speech. The degree of acoustic variability that caregivers introduce to their infants may vary across individuals. The acoustic characteristics of IDS reveal finer details about the unique voice timbre of individual caregivers, which potentially contributes to infant’ identification of individual caregivers (Piazza et al., 2017). It is, however, unclear how CI speech processing impacts the range of acoustic variability within and across caregivers due to shifts in caregivers’ speaking style (i.e., ADS to IDS), a change which likely eliminates acoustic details and potentially negatively impacts the supportive role of IDS in recognizing caregivers’ voices. CI speech processing is also detrimental to the acoustic distance of voices across caregivers, which potentially makes distinguishing talkers from each other more challenging for infants with CIs, compared to those with NH. The present study aimed to investigate these questions by focusing on simulating the limited resolution of CIs using noise-excited envelope vocoder and modeling the intelligibility benefit of ADS-to-IDS modification.

F. Benefits of investigations of acoustic properties of CI-related speech processing

Studies aimed at understanding speech perception in individuals with CIs can be characterized as involving one of three general approaches. The first approach examines performance of listeners with NH in response to vocoded speech to simulate hearing in listeners with CIs (Dorman, Loizou, & Rainey, 1997a; Jahn, DiNino, & Arenberg, 2019; Mehta & Oxenham, 2017; Qin & Oxenham, 2003, 2005). The second method involves directly study of how listeners with CIs perform in various speech recognition tasks (Brown & Bacon, 2010; Kong, Stickney, & Zeng, 2005; Peng, Tomblin, & Turner, 2008; Peng, Hess, Saffran, Edwards, & Litovsky, 2019). In a third method – the one which we focus on in the present paper – acoustic properties of simulated CI speech and unprocessed analogs are analyzed comparatively. This comparative analysis can be facilitated through the use of various quantitative metrics that emulate speech recognition in CI users as proxies to analyze properties of CI speech and its perception in listeners with CIs (Jain & Vipin Ghosh, 2018; Qin & Oxenham, 2003; Santos, Cosentino, Hazrati, Loizou, & Falk, 2013). Analysis of simulated CI speech and quantitative measures of speech quality and intelligibility tailored to listeners with CIs provide repeatable, automated, inexpensive, and fast tools for gaining preliminary evidence about speech perception in individuals with CIs. As such, a comparative analysis method offers benefits for undertaking efficient investigations for further study, and as such provides benefits over various major challenges that accompany the first two categories of studies, such as participant recruitment, time, and cost.

G. Current study

In the present study, we analyzed unprocessed and simulated CI speech of seven female talkers who spoke fifteen utterances both in ADS and IDS. These pairs of ADS and IDS speech were analyzed to examine how the limited frequency resolution of CIs may affect acoustic distinctiveness between ADS and IDS, as well as its effects on the estimated intelligibility of caregivers’ speech under modifications of speaking style (i.e., ADS to IDS). ADS and IDS stimuli of the seven female talkers were processed using noise-excited envelope vocoder with different number of channels to simulate the restricted spectral resolution and the amount of distortion in CIs (Dorman, Loizou, Fitzke, & Tu, 1998; Dorman, Loizou, & Rainey, 1997b; Friesen et al., 2001; Fu, Shannon, & Wang, 1998; Loizou, Dorman, & Tu, 1999; Mehta, Lu, & Oxenham, 2020; Mehta & Oxenham, 2017; Qin & Oxenham, 2003, 2005; Rosen, Faulkner, & Wilkinson, 1999; Shannon et al., 1995).

To examine the effects of CIs on acoustic distinctiveness between IDS and ADS, we first calculated mel-frequency cepstral coefficients (MFCCs), which have been shown in multiple studies to be effective for characterizing the distinctive qualities of IDS vs. ADS (Inoue, Nakagawa, Kondou, Koga, & Shinohara, 2011; Piazza et al., 2017; Sulpizio et al., 2018). Modeling the frequency response of human auditory system via MFCCs captures acoustic features that are involved in distinguishing IDS and ADS, such as shifts in vocal timbre (Piazza et al., 2017) and acoustic distinctiveness between IDS and ADS (Inoue et al., 2011), including in other languages (e.g., Italian and German) (Sulpizio et al., 2018). MFCCs are also able to effectively reflect caregivers’ emotional state and vocal affect (e.g., happiness vs. sadness, Sato & Obuchi, 2007; Slaney & McRoberts, 1998), attributes that help explain infants’ preference for IDS over ADS (Fernald, 2018; Horowitz, 1983; Mastropieri & Turkewitz, 1999; Moore, Spence, & Katz, 1997; Papoušek, Bornstein, Nuzzo, Papoušek, & Symmes, 1990; Singh, Morgan, & Best, 2002; Walker-Andrews & Grolnick, 1983; Walker-Andrews & Lennon, 1991). Furthermore, MFCCs allowed us to analyze spectral properties of vocoded speech, which was not feasible to do based on calculation of common acoustic properties such as fundamental frequency (F₀), as these cues are partially present in CI-simulated speech (Fuller et al., 2014; Gaudrain & Baskent, 2018). Second, to quantify the acoustic distinctiveness between IDS and ADS, we calculated a Mahalanobis distance (MD) measure over MFCCs features. MD is a multivariate distance metric that has been widely used to measure the distances between vectors in a variety of multidimensional feature spaces (Arjmandi, Dilley, & Wagner, 2018; Masnan et al., 2015; Xiang, Nie, & Zhang, 2008). Third, to model how CIs may influence intelligibility of caregivers’ speech, we calculated the speech-to-reverberation-modulation energy ratio (SRMR) to model the signal-based intelligibility of speech signals delivered to listeners with NH, as well as its CI-tailored version (SRMR-CI) to model intelligibility of speech signals delivered to listeners with CIs (Santos et al., 2013). These measures were examined both within and across speakers to model the impacts of speaking styles (IDS vs. ADS) and listener group (NH vs. CI) on signals’ distinctiveness and estimated intelligibility. All these analyses were implemented in Matlab 2019a (The Mathworks Web-Site [http://www.mathworks.com]).

The following four specific questions were addressed in this study. First, we asked how simulated CI speech processing affects the acoustic distinctiveness of IDS compared with ADS, particularly as a function of degree of spectral degradation (i.e., number of spectral channels) in CI-simulated speech. We hypothesized that (a) CI-related speech processing significantly degrades the acoustic distinctiveness of IDS compared with ADS, and further that (b) increasing the number of channels would not compensate for degradation imposed by CI-related processing as compared to the unprocessed condition. Second, we asked whether there is signal-based evidence that IDS may be more intelligible than ADS, as gauged by the SRMR metric (to simulate a NH listening condition) or the SRMR-CI metric (to simulate a CI listening condition). We hypothesized that IDS is more intelligible than ADS, but that estimated intelligibility would vary as a function of simulated listening status (NH vs. CI). Third, we asked to what extent the acoustic distinctiveness between IDS and ADS varies across individual caregivers, as well as how such individual differences might be impacted by CI speech processing, focusing on change in the spectral resolution. We predicted individual differences across caregivers in acoustic implementation of the differences between ADS and IDS; we further predicted that CI-related speech processing would decrease the extent of acoustic distinctiveness as a function of speech style, leading to loss of intra- and inter-subject acoustic variability in terms of IDS vs. ADS distinctiveness. Fourth, and finally, we asked how estimated intelligibility differences for IDS compared with ADS vary across individual caregivers, and how such intelligibility differ as a function of hearing status (as gauged by SRMR vs. SRMR-CI differences to simulate effects of NH vs. CI listening conditions, respectively). We hypothesized that intelligibility differences for IDS vs. ADS would vary across caregivers, and that these intelligibility differences would be more similar as estimated for CI listeners, compared with NH listeners.

A. Speech stimuli

Seven female adult native talkers of American English ranging in age from 21 to 24 years old spoke fifteen utterances in IDS and ADS (See Appendix in Supplementary Material for the list of stimuli). The utterances were elicited to be also used in separate infant word-learning experiments in which infants were exposed to a novel target word (i.e., “modi”) in the context of behavioral measures of infant word recognition to assess whether infants learned the novel word from IDS better than ADS. To elicit stimuli, the talkers were instructed to speak utterances as if talking to an infant (IDS condition) or an adult (ADS condition); this procedure was similar to that used in Wang et al., (2017; 2018).

Speech stimuli were recorded using an AKG D 542 ST-S microphone in a sound booth and digitized at a sampling rate of 44.1 kHz with 16-bit resolution. The distance between talkers’ mouths and the microphone was controlled to assure the quality of the recorded stimuli. Prior to processing as discussed below, the start and end points of recorded utterances were manually identified in Praat software (Boersma & Weenink, 2001) to remove preceding and following silent portions. All participants were fully informed about the purpose and procedure of this study, and they had given informed consent to participate. This study was approved by the Institutional Review Boards of the Ohio State University and Michigan State University.

B. Creation of simulated CI speech

CI-simulated versions of the unprocessed stimuli were created using noise-excited envelope vocoder processing at six levels of spectral degradation, corresponding to 4-, 8-, 12-, 16-, 22- and 32-channel noise-vocoded stimuli. The choice of number of channels was made to cover both the actual number of channels in FDA-approved devices (12, 16, 22) and to query ranges of variation ranging from minimal cues used in prior studies (4, 8) out to 32 channels to examine CI vocoder scenarios with higher spectral resolution. The natural stimuli consisting of spoken IDS or ADS were processed in AngelSim^™ Cochlear Implant and Hearing Loss Simulator (Fu, 2019; Emily Shannon Fu Foundation, www.tigerspeech.com) using 4-, 8-, 12-, 16-, 22-, and 32-channel noise-vocoding CI-simulated stimuli; the noise vocoding method followed the procedure in Shannon et al. (1995). The original stimuli were first band-passed filtered using the Greenwood function (emulating the Greenwood frequency-place map) into N (N = {4, 8, 12, 16, 22, 32}) adjacent frequency channels ranging from 200 Hz to 8000 Hz. This was implemented in AngelSim^™ by setting the absolute lower- and higher-frequency threshold for analysis and carrier filters to 200 Hz and 8000 Hz with a filter slope of 24 dB/Oct (Fu, 2019). These frequency ranges are fairly close to the corner frequencies of the Cochlear Nucleus speech processors in CI listeners cochlear implant devices (Crew & Galvin, 2012; Winn & Litovsky, 2015), which emulate the performance of average CI listeners in speech envelope discrimination (Chatterjee & Oberzut, 2011; Chatterjee & Peng, 2008). The same analysis filter and carrier filter of the Greenwood function was used to analyze white noise as a carrier signal (Greenwood, 1990). The AngelSim software used this setup to extract a time-varying amplitude envelope of speech stimuli under each frequency band using half-wave rectification and then modulated independent white-noise carriers. There were 210 stimuli per speech style condition (7 talkers x 15 stimuli x 2 speaking styles). Including the noise-vocoded versions of these utterances (at 4, 8, 12, 16, 22, and 32-channels), we analyzed 1470 (210 x 7 levels of speech degradation) utterances in the present study.

C. Using MFCC features to characterize acoustic properties of IDS and ADS

We calculated 12 MFCCs for each speech stimulus to characterize its acoustic information (Hunt, Lennig, & Mermeletein, 1980; Imai, 1983; Shaneh & Taheri, 2009). Figure 1 illustrates this step for a sample pair of IDS-ADS stimuli in the process for measuring the acoustic distinctiveness between each ADS-IDS stimulus pair. To calculate MFCCs, each stimulus was re-sampled at 16 kHz using a Hamming window of 25 ms applied to each frame, with a frame shift of 10 ms, following the procedure used in Inoue et al. (2011). For each pair of IDS and ADS stimuli ( and in Figure 1), MFCCs were calculated for all frames of these stimuli ( and ). Here, i indicates the index of the speech stimulus, i = {1,2,3,…,15}, and j is the index for the talker, j ={1,2,3,…,7}. Unlike previous studies in which a single, time-averaged MFCC vector was calculated to represent acoustic information in IDS and ADS (e.g., Piazza et al., 2017), our approach took advantage of all MFCCs derived from all frames of a speech stimuli to calculate the acoustic distinctiveness between ADS-IDS pairs of stimuli within a multidimensional feature space, thereby preserving the details about spectro-temporal information in speech at the level of frame. Since each analyzed pair of IDS and ADS stimuli contained identical word strings, our analysis was expected to mainly model the acoustic effects of caregivers’ speaking styles (IDS vs. ADS).

• Download figure
• Open in new tab

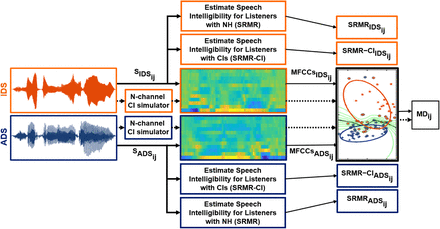

FIG. 1.

Schematic diagram of the approach used in the present study for measuring (1) MD between pairs of MFCCs derived from pairs of IDS-ADS stimuli, and (2) intelligibility of IDS and ADS stimuli as estimated by SRMR value for listeners with NH and SRMR-CI for those with CIs. Note that the dashed line denotes the process for creating and analyzing the noise-vocoded versions of the same pairs of stimuli, while N stands for the number of spectral channels in the noise-excited envelope vocoder. Blocks and lines with blue (dark gray) color indicate paths for processing ADS, while those with orange (light gray) color indicate paths for processing IDS. Note that SRMR and SRMR-CI were calculated only for unprocessed stimuli in order to estimate intelligibility for NH and CI listeners, respectively. In this figure, the waveforms and their corresponding MFCCs are from the utterance “See the modi?” spoken by one of the seven talkers both in IDS and ADS speaking styles. and are the i^th pair of IDS and ADS stimuli (i = {1,2,3,…,15}) for talker j (j ={1,2,3,…,7}). and are MFCC features derived from and speech stimuli, respectively. The middle two panels show MFCCs obtained from the frames of these IDS and ADS stimuli. MD_ij is the MD calculated to measure the acoustic distance between the two matrices for and . and are the estimated intelligibility for and speech stimuli, respectively, as heard by listeners with NH. and are the estimated speech intelligibility for the same and speech stimuli, respectively, as heard by a listener with CIs.

D. Acoustic distinctiveness quantification using Mahalanobis Distance (MD) measure

After representing acoustic features of pairs of IDS and ADS stimuli by calculating their MFCCs, the acoustic distinctiveness between each pair was measured by calculating MD on the corresponding MFCC matrices (i.e and ) using a 12-dimensional feature space (i.e., 12 MFCCs) (Maesschalck & Massart, 2000; Masnan et al., 2015; Xiang et al., 2008). MD is a multivariate statistical approach that evaluates distances between two multidimensional feature vectors or matrices that belong to two classes (here IDS vs. ADS) (Arjmandi et al., 2018; Heijden, Ferdinand, Ridder, & Tax, 2005; Maesschalck & Massart, 2000; Masnan et al., 2015). The MD calculation returns the distance between means of two classes (here IDS and ADS) relative to the average per-class covariance matrix (Maesschalck & Massart, 2000). Here, acoustic properties of each class were represented by two feature matrices (here, MFCCs). The larger the distance between pairs of and feature vectors, the lower the overlap between two classes of IDS and ADS; this corresponds in turn to greater acoustic distance (or distinctiveness) between IDS and ADS stimuli.

Each row of the calculated MFCCs matrix for utterance i from talker j (e.g., or ) corresponds to a frame of that utterance, and 12 MFCCs were presented on the columns of this matrix. Therefore, the dimension of each MFCC matrix was N_F x 12, where N_F refers to the number of frames in that speech stimulus. The acoustic distinctiveness between IDS and ADS stimuli for each female talker j was computed by averaging the fifteen MD values obtained from that talker’s fifteen IDS-ADS pairs . This process was separately performed on pairs of IDS and ADS stimuli for seven levels of spectral degradation – unprocessed, 32-, 22-, 16-, 12-, 8-, and/or 4-channel noise-vocoded CI-simulated stimuli – to give average MDs used to examine (1) how the acoustic distinctiveness between IDS and ADS stimuli changes as a function of CI processing (and number of spectral channels), (2) how individual caregivers vary in acoustic distinctiveness between IDS and ADS stimuli, and (3) how the limited spectral resolution in CIs may affect this pattern of individual differences across talker.

E. Estimation of speech intelligibility using quantitative metrics of speech-to-reverberation-modulation energy ratio (SRMR)

As shown in Figure 1, we estimated the degree of intelligibility of each speech stimulus as it might be experienced by listeners with NH or with CIs. To approximate stimulus intelligibility as associated with NH, we calculated the quantitative metric of speech-to-reverberation-modulation energy ratio (SRMR) for IDS and ADS (unprocessed) stimuli, respectively (Santos et al., 2013). This metric has previously been validated as an approximation of intelligibility of speech to listeners with NH in behavioral tasks (Falk et al., 2015; Santos et al., 2013). Further, to approximate intelligibility as might be experienced by listeners with CIs, we calculated an adapted version of the SRMR metric, which was also developed by Falk et al. (2013) to tailor the SRMR metric for CI users; this adapted metric is known as SRMR-CI (Santos et al., 2013).

To calculate SRMR, an (unprocessed) speech stimulus was first filtered by a 23-channel gammatone filterbank in order to emulate cochlear function. Next, a Hilbert transform was applied to output signals from each of the 23 filters in the filterbank to obtain their temporal envelopes. Next, modulation spectral energy for each critical band was calculated by windowing stimulus temporal envelope and computing the discrete Fourier transform. To emulate frequency selectivity in the modulation domain, the modulation frequency bins were grouped into eight overlapping modulation bands with logarithmically-spaced center frequencies between 4 and 128 Hz. Finally, the SRMR value was obtained by calculating the ratio of the average modulation energy in the first four modulation bands (∼ 3–20 Hz) to the average modulation energy in the last four modulation bands (∼ 20-160 Hz), as explained in Santos et al., (2013).

To calculate SRMR-CI, a 22-channel filterbank was used instead of a 23-channel filterbank in order to emulate the structure of filterbanks in Nucleus CI devices. In addition, the 4-128 Hz range of modulation for filterbank center frequencies was replaced by a 4–64 Hz range to better emulate CI users’ performance (Santos et al., 2013). Although these measures have not primarily been developed to estimate the effect of talkers’ speaking style on speech intelligibility, the signal processing algorithms used in these metrics estimate the distribution of energy in various frequency bands, as well as other spectral properties that are expected to emulate fairly well performance of NH and CI users in speech recognition. Intelligibility of signals as estimated for different hearing statuses (NH or CI) is inherently modeled through the difference in algorithmic implementation of these metrics (SRMR vs. SRMR-CI, respectively) (Santos et al., 2013).

As shown in Figure 1, SRMR and SRMR-CI values were separately calculated ( and ) for each pair of stimuli in IDS and ADS conditions ( and ). Intelligibility of speech stimuli produced by talker j in the two conditions (ADS and IDS) was summarized by averaging the relevant SRMR-related values over the 15 stimuli spoken by this talker at each of these two conditions. Therefore, for talker j, four values were calculated: (i) , (ii) , (iii) , (iv) .These four values for each talker j provided an approximation of the intelligibility of IDS and ADS stimuli spoken by this talker, as heard by listeners with NH ( and ) and by those with CIs ( and ). These values were then used to address (1) how the intelligibility of speech is affected by the two separate factors of caregivers’ speaking styles (ADS vs. IDS), as well as by (simulated) group hearing status (NH vs. CI), (2) the extent to which the degree of impact of ADS-to-IDS speaking style modifications on intelligibility varies across individual caregivers, and (3) how this variation is affected by (simulated) hearing status (NH vs. CI).

F. Statistical analysis

We constructed two Generalized Linear Mixed Models (GLMMs) in Matlab (using the fitglme function) (Matuschek, Kliegl, Vasishth, Baayen, & Bates, 2017; Quené & van den Bergh, 2008) in order to (1) identify whether changes in acoustic distinctiveness (i.e., MD) between IDS and ADS due to CI noise vocoding were statistically significant, and (2) to examine the effect of speaking style (IDS vs. ADS) and simulated hearing status (NH vs. CI), and any potential interaction, on intelligibility of speech (as measured by SRMR and SRMR-CI to simulate NH and CI hearing statuses, respectively). For the first GLMM, the speech degradation level (i.e., 4, 8, 12, 16, 22, and 32-channel, and unprocessed) was entered into the model as a fixed predictor, and MDs were defined as the response variable. The individual female talkers and speech stimuli were defined as random effects (intercepts) in the model to account for quality differences that might exist due to talker- and stimulus-specific variation. A post hoc test using Tukey’s multiple comparison approach (multcompare, MATLAB, Mathworks) was conducted to examine statistically significant mean differences for all possible pairwise comparisons across seven levels of spectral degradation (4, 8, 12, 16, 22, 32-channels, and unprocessed). In the second GLMM, factors of speaking style (IDS or ADS) and simulated hearing status (NH or CI) were entered into the model as independent fixed variables; the estimated speech intelligibility (cf. SRMR or SRMR-CI values) corresponded to the response variable in the model. Talkers and speech stimuli were entered as random-effect intercepts in the model to account for quality and/or information differences that might exist due to talker- and stimulus-specific variation.

Measures of central tendency and variability (i.e., mean, standard deviation, and range) were calculated as descriptive statistics to evaluate the degree of variability across caregivers in acoustic implementation of IDS and ADS. We further calculated coefficients of variance (CVs) for MD differences between ADS and IDS conditions for both unprocessed and simulated CI speech within a 22-channel noise-vocoder to examine whether variability across individual caregivers in ADS-IDS acoustic distinctiveness decreased as a function of speech degradation (unprocessed vs. 22-channel simulated CI speech). The same analysis was performed to examine whether changes in speech intelligibility – due to an ADS-to-IDS style shift – were variable across talkers and/or how variability changed as (simulated) listener hearing status changed (from NH to CI). We further calculated Pearson correlation coefficients to examine whether changes in acoustic distinctiveness and speech intelligibility due to changes in speaking style (ADS to IDS) across degradation levels (unprocessed vs. 22-channel vocoded) and hearing status (NH vs. CI) involved a linear transformation.

B. Effects of CI-related spectral degradation on ADS-vs-IDS acoustic distinctiveness

Fig. 2 shows the mean and distribution of MDs obtained as a function of signal degradation that ranged from a no-degradation (i.e., unprocessed) condition to CI-simulated speech for which the number of spectral channels in the noise-vocoder was gradually reduced from 32 to 4. Overall, MDs between IDS and ADS monotonically decreased with decreasing numbers of spectral channels in the noise-vocoder, thereby highlighting the detrimental effects of limited spectral resolution in CI devices for signal fidelity. As illustrated in Fig. 2, the acoustic distinctiveness between IDS and ADS is reduced by CI speech processing systems and further reduced through decreasing the number of spectral channels. Even the highest-fidelity CI-simulated condition (32-channel noise-vocoded speech) showed a substantial drop in acoustic distinctiveness between IDS and ADS, relative to the unprocessed condition. The average MD across the six noise-vocoded conditions showed a decline of approximately 67% relative to MD at the unprocessed condition, indicating that a large portion of acoustic information involved in conveying the distinction between IDS and ADS was lost due to CI-related speech processing.

• Download figure
• Open in new tab

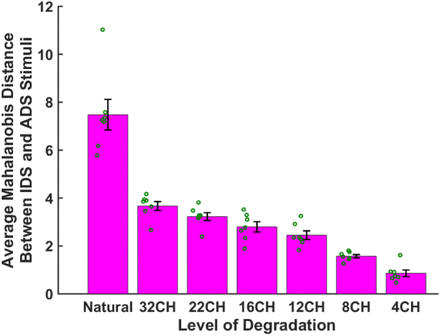

FIG. 2.

The mean (bar) and ±1 standard error (vertical error bar in black) of Mahalanobis distance (MD) across groups of IDS and ADS stimuli at seven levels of spectro-temporal degradation, ranging from no-degradation (natural/unprocessed) to 4-channel noise-vocoded stimuli. Green (dark gray) circles show the mean MDs for each talker derived by averaging MDs over 15 pairs of IDS-ADS stimuli for that talker.

Table I represents the results of the GLMM analysis to test statistical significance of the effect of CI-related speech processing on MD. As this table suggests, the detrimental effect of CI-related processing, as captured in the decrease in the number of spectral channels on the distinctiveness between IDS and ADS was statistically significant (β = −0.886, t = −16.54, p < 0.0001). Post hoc testing using a Tukey’s multiple comparison approach revealed that the simulated effect of limited spectral resolution in CI processing on the decrease in MDs was statistically significant for comparisons of all pairs of speech degradation conditions except three (32 vs. 22 channels, 22 vs. 16 channels, and 16 vs. 12 channels).

B. Effects of CI-related speech processing on intelligibility of ADS and IDS

Fig. 3 shows average SRMR or SRMR-CI values estimating intelligibility of ADS and IDS stimuli for NH and CI listeners. The bar graphs show the group data, corresponding to the means averaged across talkers. The figure suggests that speech spoken in IDS is more intelligible than matched utterances in ADS, regardless of whether intelligibility is estimated for listeners with NH or those with CIs. On average, the stimuli spoken in IDS were ∼15% more intelligible than those spoken in ADS for listeners with normal hearing, as measured by the SRMR metric. This average improvement in intelligibility of IDS stimuli over ADS stimuli was ∼5.7% for listeners with CIs, as estimated by SRMR-CI, suggesting that the supportive effects of IDS for speech intelligibility improvement is decreased through CIs.

• Download figure
• Open in new tab

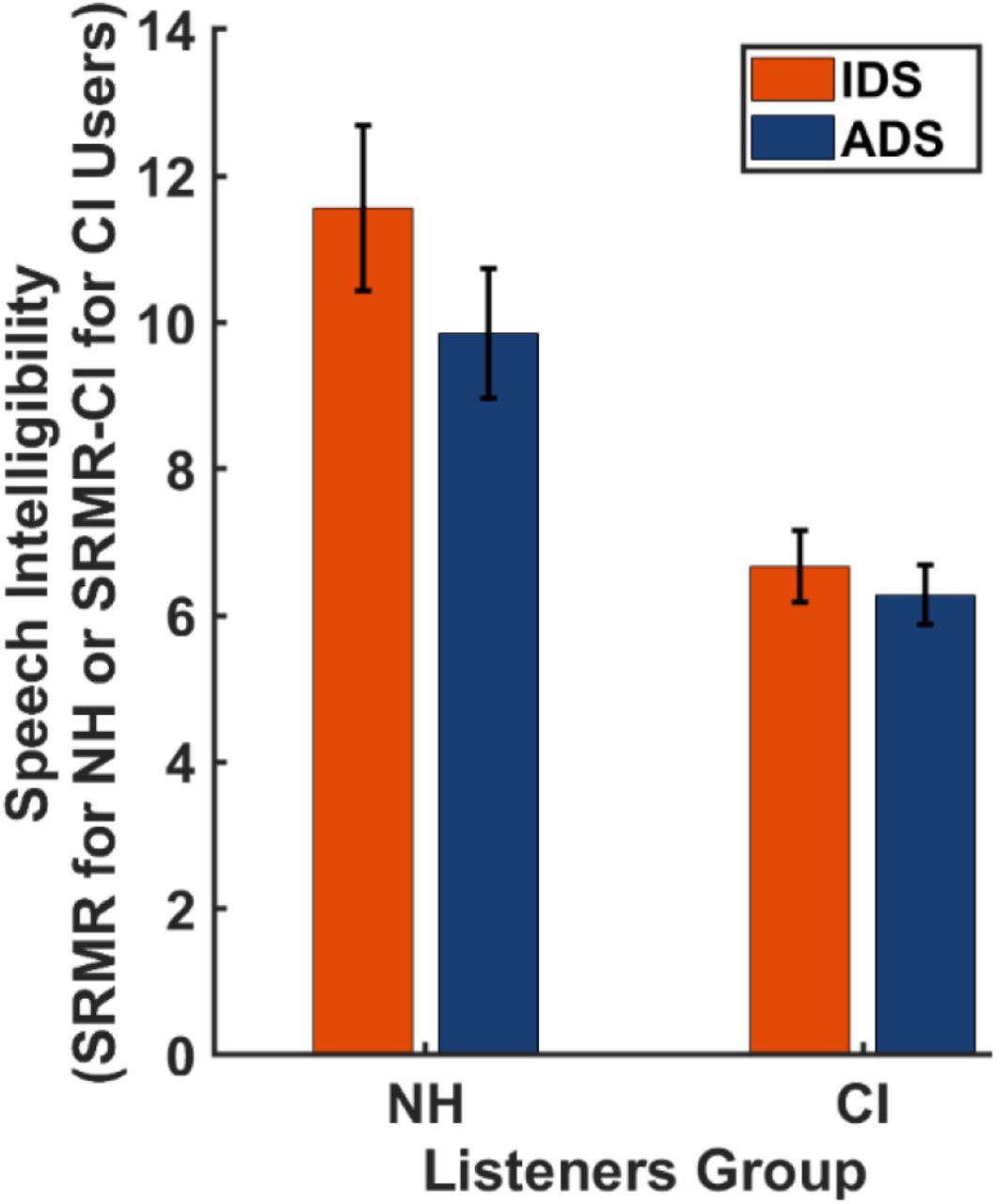

FIG. 3.

Estimated intelligibility of speech stimuli spoken in IDS (orange; light gray) and in ADS (blue; dark gray) styles (simulated) groups of listeners with different hearing statuses: NH (estimated by SRMR) and those with CIs (estimated by SRMR-CI). The bar graphs represent average values of SRMR or SRMR-CI over the seven talkers.

The results from the GLMM analysis for examining the effect of talkers’ speaking style (IDS vs. ADS), listeners’ group (NH vs. CI), and their interaction on intelligibility of speech (Table II) revealed a significant effect of speaking style (β = 3.05, SE = 0.74, t = 4.14, p < 0.0001). This analysis provides new evidence that IDS may likely improve intelligibility of caregivers’ speech to both listeners with NH and those with CIs. These results further showed a significant, negative effect of CI-related processing on intelligibility of caregivers’ speech (β = −2.23, SE = 0.74, t = - 3.02, p < 0.0001). In addition, a significant interactive effect between speaking style and listeners group was revealed by the GLMM model (β = −1.337, SE = 0.466, t = −2.865, p < 0.001), reflecting the fact that hearing speech through CIs resulted in a smaller intelligibility gain from IDS relative to ADS than was observed in the NH condition.

C. Individual differences across caregivers in ADS-vs-IDS acoustic distinctiveness and the effect of simulated CI processing

To examine individual differences across talkers in acoustic distinctiveness of IDS from ADS, we focused on MD data from the individual talkers in two conditions (unprocessed and 22-channel CI-simulated noise-vocoded speech), as shown in Fig. 4A (left vs. right bars, respectively). Two general observations are noticeable in this data. First, caregivers vary considerably in terms of the amount of acoustic variability created by their ADS-to-IDS modification (mean = 7.47, SD = 1.70, range = 5.23). For example, the ADS-to-IDS shift in MD for talker 2 exposes a child with NH (cf. natural, unprocessed condition) to a much wider range of acoustic information compared to that for talker 3. This, in turn, suggests that a child of talker 2 would be more advantaged in learning acoustic patterns of her caregivers’ speech compared to a child of talker 3.

• Download figure
• Open in new tab

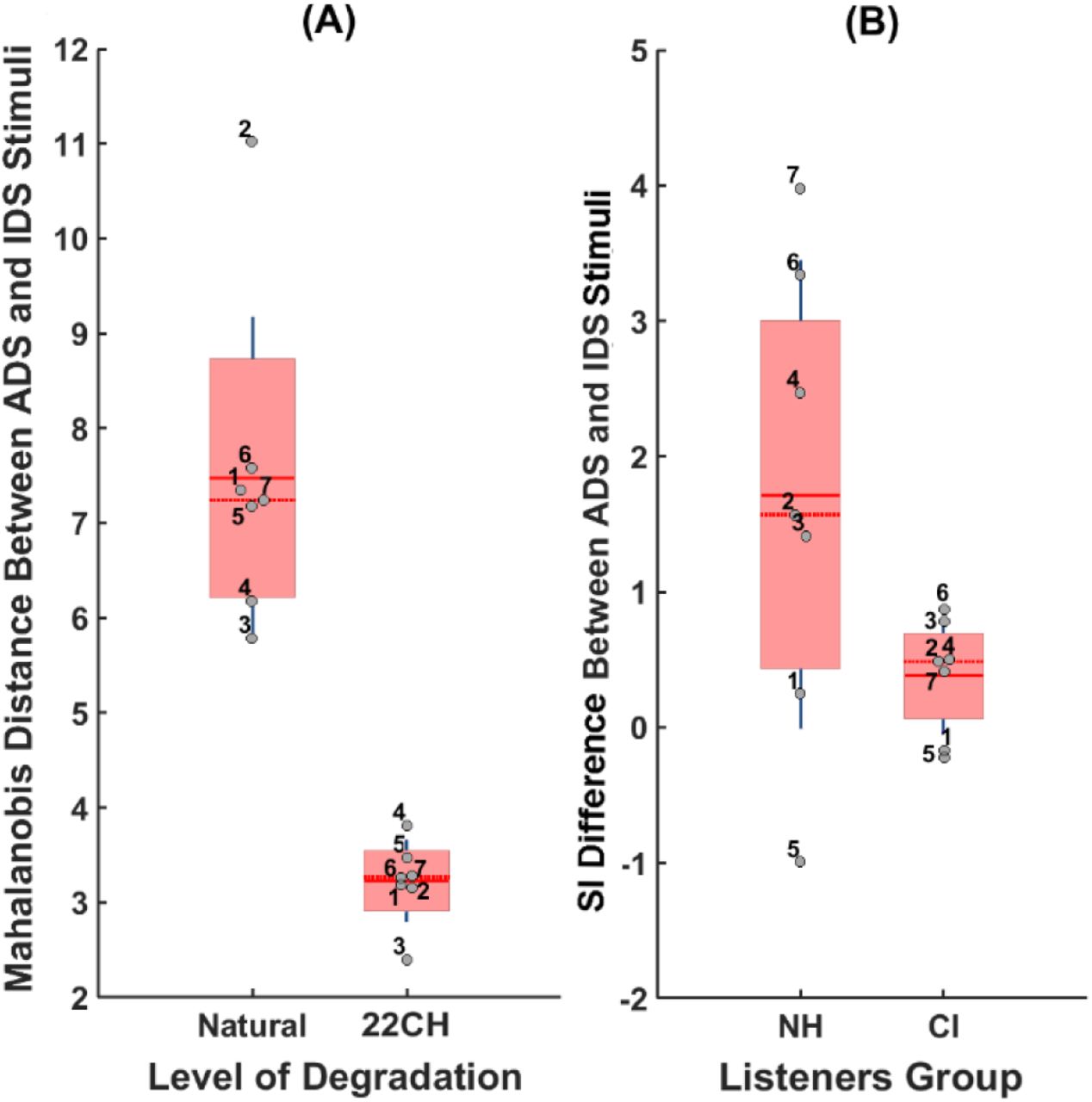

FIG. 4.

Variability across seven female talkers in (A) acoustic distinctiveness between their IDS and ADS for unprocessed stimuli (Natural) and simulated CI speech within a 22-channel noise vocoder (22CH), and (B) the change in talkers’ speech intelligibility (SI) due to a change in their speaking style (ADS to IDS), as heard for two (simulated) listener groups with either NH (estimated by SRMR) or CIs (estimated by SRMR-CI). The data points (gray circles) are laid over a 1.96 standard error of the mean (95% confidence interval) in red (rectangle area with light gray) and 1 standard deviation shown by blue lines (vertical dark gray lines). The solid and dotted red lines (horizontal solid and dotted dark gray lines) show the mean and median, respectively.

The second observation is that the magnitude of this acoustic variability significantly reduced for CI-simulated signals (mean = 3.22, SD = 0.43, range = 1.4). An analysis of coefficient of variation (CV) revealed that the standard deviation of MD for unprocessed (natural) speech stimuli was 22.7% of its mean, whereas this value was 13.3% for CI-simulated speech stimuli for the 22-channel noise-vocoder. Comparing these two CV values shows that the magnitude of variation in ADS-IDS acoustic distinctiveness (i.e., MD) reduces approximately by half due to CI-related speech processing, highlighting a major loss of acoustic information useful for recognition of caregivers themselves and for distinguishing them from other caregivers.

If CI-simulated processing involves a linear transformation of acoustic distinctiveness across speech styles for each talker, then we should observe MD differences to be significantly correlated across natural (i.e., unprocessed) and 22-channel noise-vocoded conditions. The Pearson’s correlation coefficient was r(5) = 0.07 (p = 0.87), suggesting that CI-simulated speech processing did not impact talkers’ speech proportionately in terms of the acoustic distinctiveness between their IDS and ADS. Instead, CI-related speech processing reduced the IDS-ADS acoustic distance for some talkers (e.g., talker 6) more than others (e.g., talker 4).

D. Individual differences across caregivers in IDS and ADS intelligibility and the effect of hearing status

To examine how individual talkers vary in the effects of their ADS-to-IDS modifications on intelligibility of speech to listeners with NH and those with CIs, we focused on patterns of SRMR and SRMR-CI metrics from the individual talkers. For (simulated) listeners with NH, SRMRs of pairs of IDS and ADS stimuli were subtracted for each talker and averaged over 15 pairs of ADS-IDS stimuli in order to measure the amount of change in her speech intelligibility due to ADS-to-IDS modification (for talker j, ). Likewise, for (simulated) listeners with CI, SRMR-CIs of pairs of IDS and ADS stimuli were subtracted for each talker and averaged over 15 pairs of ADS-IDS stimuli in order to quantify the amount of change in her speech intelligibility due to ADS-to-IDS modification (for talker j, ). difference measure represents IDS being, on average, more intelligible than ADS for a talker, showing an intelligibility benefit for IDS over ADS for that talker.

Figure 4B (right panel) shows the results for changes in intelligibility of speech of talkers due to modifications to speaking style. The bar plot on the left in Figure 4B (labeled as NH on the x-axis) presents the difference across seven talkers in IDS-ADS intelligibility as estimated for listeners with NH. The data in this scatter plot shows how much speech of a talker (e.g., talker 6) would be heard as more or less intelligible as the talker speaks the utterances or words in IDS compared to ADS.

Two patterns are observable in Figure 4B. First, the change in intelligibility of talkers’ speech due to the speaking style modification (ADS to IDS) was fairly variable across talkers for simulated listeners with NH (mean = 1.71, SD = 1.73, range = 4.97), such that this change was associated with relatively more intelligible speech for some talkers compared to others. As this plot suggests, when talkers change their speaking style from ADS to IDS, not only does this not lead to an equal amount of change in intelligibility of speech across talkers, but for one talker the direction of this effect is even slightly negative (talker 5). For the majority of talkers (6 out of 7 talkers), IDS was more intelligible than ADS (as shown by a positive difference value).

Second, relative to the size of the ADS-to-IDS shift for simulated NH listeners, the size of this ADS-to-IDS shift was overall considerably reduced for simulated listeners with CIs (mean = 0.38, SD = 0.43, range = 1.10). The bar plot on the right panel of figure 4B (labeled as CI on the x-axis) presents the dispersion of change in speech intelligibility for each talker due to changing speaking style from ADS to IDS, as estimated for listeners with CIs. Notably, CI-related processing decreases the degree of variability in speech intelligibility, compared with that for NH, as expected. An analysis of CV showed that although the mean of change in speech intelligibility due to ADS-to-IDS modifications was overall smaller for the simulated CI condition compared to the simulated NH condition, while the magnitude of variability was almost the same for two groups of listeners (CV ≅11%). Highlighting non-linearity of effects of CI processing on speech across different talkers, there was no significant correlation across the seven talkers for ADS-to-IDS intelligibility differences in simulated CI vs. NH listening conditions (r(5) = 0.74, p = 0.58).
