Artificial intelligence enables comprehensive genome interpretation and nomination of candidate diagnoses for rare genetic diseases

Patient selection, phenotyping, and specimen sequencing

Variant annotation and data sources

All analyses where performed based on the GRCh37 human genome assembly. Variant consequences and annotations where obtained with VEP v.95 [39] utilizing ENSEMBL transcripts version 95 (excluding non-coding transcripts) and selecting the canonical transcript for analysis. Transcript specific prediction for evaluating variant deleteriousness were calculated with VVP [40], which were also used as input for VAAST [14]. Variants where annotated with ClinVar (20200419) [41] ensuring exact position and base match. Gene-conditions where extracted from OMIM (2020_07) [42] and HPO (obo file, 2020-08-11) [43]. Gene symbols where harmonized using ENSEMBL and HGNC databases controlling for synonymous gene symbols.

AI-based Disease Gene and Condition Prioritization

AI-based prioritization and scoring of candidate disease genes and diagnostic conditions was performed using GEM in the commercially available Fabric Enterprise platform (Fabric Genomics, Oakland, CA). GEM inputs are genetic variant calls in VCF format and case metadata, including (optional) parental affection status, and patient (proband) phenotypes in the form of Human Phenotype Ontology (HPO) terms. The VCF files can include “small variants” (single nucleotide, multiple nucleotide, and small insertion/deletion variants), and (optionally) structural variants (insertion/deletions of over 50bp, inversions, and/or copy number variants with imprecise ends). This information can be provided via an application programming interface or manually in the user interface. Data analysis is typically carried out in minutes depending on inputs. GEM outputs are displayed in an interactive report (Supp. Fig. 1) that includes a list of candidate genes ranked by the GEM gene score (see below), detailed information of patient variants present in each candidate gene, and conditions associated with each candidate gene ranked by GEM’s condition match (CM) score (explained below).

• Download figure
• Open in new tab

Figure 1. The diagnostic sensitivity of GEM was greater than the variant prioritization methods

Phevor, Exomiser and VAAST. (A) Proportion of the benchmark cohort of 119 cases where the true causal gene (or variant in the case of causal SVs) was identified among the top 1st, 2nd, 5th, or 10th gene candidates. Patient phenotypes were extracted manually from medical records by clinicians and provided as HPO term inputs to GEM, Exomiser and Phevor. VAAST only considers variant information. It should be noted that GEM and Phevor ranks correspond to genes, which may include one or two variants (the latter in the case of a compound heterozygote), whereas Exomiser and VAAST ranks were for single variants. In the case of compound heterozygotes, the rank of the top-ranking variant is shown for Exomiser and VAAST. (B) Comparison of GEM performance in the benchmarking cohort (excluding SV cases) versus the validation cohort (comprised of 60 rare genetic disease cases from multiple sources).

GEM aggregates inputs from multiple variant prioritization algorithms with genomic and clinical database annotations, using Bayesian means to score and prioritize potentially damaged genes and candidate diseases. Briefly, the algorithm parametrizes itself using the proband’s called variants as one-time, run-time training data, inferring the states of multiple variables directly from the input variant distribution, e.g., sex. Additional static training parameters were derived from the 1000 Genomes Project [44] and CEPH [45] genome datasets. GEM reevaluates genotype calls and quality scores considering read support, genomic location, proband sex and potentially overlapping SVs, augmenting the genotype calls with more nuanced posterior probabilities, computing ploidy for each variant. GEM also computes the likelihood that the proband belongs to any of several different ancestry groups using the input genotypes together with gnomAD sub-population variant frequency data [46]. The probabilities of other, internal, variables, conditioned on each state (sex and ancestry, etc.) are then obtained using naive Bayes, controlling for non-independence of variables by calculating a correlation matrix at run time using the proband’s data.

GEM’s gene scores are Bayes Factors (BF) [47]. Analogous to the likelihood ratio test, a Bayes Factor presents the log₁₀ ratio between the posterior probabilities of two models, summarizing the relative support for the hypothesis (in this case) that the prioritized genotype damages the gene in which it resides and that explains the proband’s phenotype versus the contrapositional hypothesis that the variant neither damages the gene nor explains the proband’s phenotype. In keeping with established best practice [47], a log₁₀ Bayes Factor between 0 and 0.69 is considered moderate support, between 0.69 and 1.0 substantial support, between 1.0 and 2.0 strong support, and above 2.0, decisive support. A score less than 0 indicates that the counter hypothesis is more likely. For calculating the Bayes posterior p(M|D), the probability of the data given a model (pD|M) is derived from GEM’s severity scoring protocol, which includes input from the VAAST and VVP algorithms, and any available prior variant classifications from the ClinVar database. This model is conditioned upon sex, ancestry, feasible inheritance model, gene location, and gene-phenotype priors derived by seeding the provided patient HPO terms to the HPO ontology graph and subsequently obtaining priors for all genes in the HPO and GO ontologies by belief propagation using Phevor’s previously described Bayesian network-based algorithm [15]. The prior probability for the model (pM) is based upon known disease associations in the Mendelian conditions databases OMIM and/or HPO with the gene in question.

GEM’s Bayes Factor-based scoring system is designed for ease of explanation and to speed interpretation. GEM scores are not intended to be definitive, rather they are designed to provide guidance for succinct case reviews carried out by clinical geneticists. Thus, GEM outputs also include several additional scores that provide additional guidance and improve explainability. GEM gene scores, for example, are accompanied by VAAST [14], VVP [40], and Phevor [15] posterior probabilities, conditioned upon the potentially confounding variables of proband sex, gene location and ancestry, together with common variant genomic and clinical annotations (Supp. Fig. 1). These scores further ease interpretation, as they allow users to assess the major drivers of a GEM score and their relative contributions to it.

GEM also provides means to assess the Mendelian conditions associated with putative disease-causing genes as possible diagnoses via its condition-match (CM) scores. Like gene scores, CM scores are Bayes Factors, and are derived from the log₁₀ ratio of the posterior probability that HPO phenotype associations for a given Mendelian condition’s HPO are consistent with the proband’s phenotype versus the contrapositional hypothesis. For these calculations, the probability of the data, p(D|M), is determined using Phevor’s Bayesian network algorithm to obtain a probability for each disease, conditioned upon the proband’s phenotype. The prior probability for the model, p(M), is the probability that one or more genes associated with the Mendelian condition (as documented in OMIM and/or HPO) contain a damaging genotype as ascertained by GEM’s severity scoring protocol. Condition match scores are displayed alongside each gene-associated condition for review (Supp. Fig 7).

Structural variant scoring and ab initio inference by GEM

At run time, GEM infers ab initio the existence of SVs, their coordinates, and their copy numbers (ploidy) in a probabilistic fashion using SNVs, sort indel calls, read depths, zygosity and gnomAD frequency data. GEM searches the proband’s genotypes for evidence of three types of SV: deletions, duplications and CNVs. Regions exhibiting loss of heterozygosity (LOH), for example, are used as evidence heterozygous deletions. Genomic spans lacking expected variants, the signature of homozygous deletions, are identified using gnomAD population frequencies [46] to derive point estates that a given gnomAD variant would or would not be ascertained given its population frequency. Further evidence for duplications and deletions is derived from read support, e.g. approximately integer increases or decreases in depth across a region provide support for copy number variation. Point estimates at each site of a small variant call are further conditioned upon provided variables, such as genotype qualities, and inferred ones, such as sex and ancestry, to obtain more refined estimates. High scoring segments and their maximum likelihood start and end coordinates are identified using a Markov model [48]. The results are used to determine the degree of support for external SV calls, and as the basis for GEM’s own SV calls. For ease of reporting, ab initio SV calls that overlap an external SV call (default minimum reciprocal overlap of 33%) are replaced in the output by the external SV call as long as they still overlap the relevant scored genes.

Benchmarking Variant Prioritization with VAAST, Phevor, and Exomiser

We used the Snakemake software [49] to create a workflow that analyzes cases with the VAAST, Phevor, and Exomiser algorithms. The pipeline starts with a VCF file, family structure, affection status, and HPO terms, and produces a test file that includes the output for each of the algorithms. VVP scores where obtained as described above and provided to VAAST as input. VAAST was provided pedigree information and affection status and was run in both dominant and recessive modes with results aggregated. Gene ranks for VAAST are reported for the highest scoring occurrence of the gene from aggregated outputs. Phevor was provided with HPO terms and VAAST scores as inputs. Ranks where selected as described for VAAST.

Exomiser [16] benchmark analyses were run with the same configuration used in the 100,000 Genomes Project [50], specifically: 1) using the GRCh37 genome assembly; 2) analyzing autosomal and X-linked forms of dominant and recessive inheritance; 3) allele frequency sources from the 1,000 Genomes Project, TopMed, UK10K, ESP, ExAC, and gnomAD (except Ashkenazi Jewish); 4) pathogenicity sources from REVEL and MVP; and 5) including the steps failedVariantFilter, variantEffectFilter (remove non-coding variants), frequencyFilter with maxFrequency = 2.0, pathogenicityFilter with keepNonPathogenic = true, inheritanceFilter, omimPrioritiser and hiPhivePrioritiser.

Exomiser was considered to have identified the diagnosed gene when it was scored as a candidate for any of the utilized modes of inheritance. None of the tools in this analysis were provided a target mode of inheritance (as it is unknown), and so the diagnostic gene rank for Exomiser was determined from its rank within the combined gene candidate list from all modes of inheritance (i.e., the same procedure used for VAAST and PHEVOR). The ranks within the combined list of candidate genes were generated by sorting gene-level candidates from all modes of inheritance on the Exomiser combinedScore in descending order with each candidate-gene only added to the list on its first, highest scoring occurrence. Exomiser variant level scoring was not considered for determining candidates or ranking. All Exomiser analyses on the benchmark dataset ran to completion and successfully produced output; however, in 18 cases, Exomiser did not identify the true positive diagnostic gene as a scored candidate (i.e., it was absent from its output). A similar phenomenon was observed in 4 cases using VAAST. For both tools, these cases were considered false negatives.

Impact of deep phenotypes derived from clinical NLP

The utility of HPO terms was investigated by rerunning all analyses from the benchmark cohort with three sets of HPO terms. For each case an HPO terms list was provided that included HPO terms manually curated by the analysis team when the case was originally solved. A second set of HPO terms was generated from NLP analysis of clinical notes related to the case using the CLiX ENRICH software (Clinithink, Alpharetta, GA) [28]. A randomized set of HPO terms was generated for each case whereby the number of HPO terms from the CliniThink analysis case was held constant, and alternate terms were randomly selected from the entire corpus of HPO terms across all samples with each selection probability determined by the number of times that term occurred in the corpus.

GEM AI outperforms variant prioritization approaches

We benchmarked GEM, an AI-based eCDSS, using a cohort of 119 pediatric retrospective cases from Rady Children’s Institute for Genomic Medicine (RCIGM; benchmark cohort). Most of these were critically ill NICU infants who received genomic sequencing for diagnosis of genetic diseases. All had been diagnosed with one or more Mendelian conditions using a combination of manual filtering and variant prioritization approaches (“Methods”). To further validate performance, we also analyzed a second cohort comprised of 60 non-NICU, rare disease patients from five different academic medical centers (validation cohort). Finally, we re-analyzed a set of 14 previously analyzed probands that had remained undiagnosed by WGS. Our goal was to evaluate the ability of GEM to identify new diagnoses in these previously negative cases, without providing false positive findings that would result in time consuming case reviews. To provide context for our performance benchmarks, we also ran three commonly used variant prioritization tools: VAAST [14], Phevor [15], and Exomiser [16].

The benchmark and validation cohorts included singleton probands, parent-offspring trios, different modes of inheritance, and both small causal variants (SNVs, and small insertions or deletions, indels; Table 1; Supp. Table 1) and large structural variants (SV), some of which were causative (Table 2). In these retrospective analyses, we considered the variants, disease genes and conditions that were included as primary findings in the clinical report as the “gold standard” truth set.

GEM gene scores are Bayes Factors (BF) [51]; these were used to rank gene candidates (Supp. Fig. 1). BFs are widely used in AI, as they concisely quantify the degree of support for a conclusion derived from diverse lines of evidence. In keeping with established practices [51], a BF of 0 – 0.69 was considered moderate support, 0.69 – 1.0 substantial support, 1.0 – 2.0 strong support, and above 2.0, decisive support [51]. Scores less than 0 indicated support for the counter hypothesis – that variants in that gene were not causal for the proband’s disease. GEM outputs also included several annotations and metrics that provided additional, supportive guidance for subsequent expert case review (Supp. Fig. 1). Experience has shown that such guidance is critical for adoption by experts who wish to review the evidence supporting automated variant assertions. These included VAAST, VVP and Phevor posterior probabilities, conditioned upon proband sex, gene location and ancestry. Annotations included variant consequence, ClinVar database pathogenicity assessments, and OMIM conditions associated with genes. This metadata enabled expert users to review the major contributions underpinning a final GEM score. Moreover, GEM prioritizes diplotypes, rather than variants, which speeds interpretation of compound heterozygous variants in recessive diseases (Supp. Fig. 1B). Comparison of the diagnostic performance of GEM to variant priortization methods utilized ranking of the correct diagnostic gene. We assumed that in the case of compound heterozygotes, variant prioritization methods such Exomiser, would rank one variant of the pair highly, leading to identification of the other upon manual review (“Methods”).

GEM ranked 97% of previously reported causal gene(s) and variant(s) among the top 10 candidates in the 119 benchmark cohort cases. In 92% of cases, it ranked the correct gene and variant in the top 2 (Fig. 1A). By comparison, the next best algorithm, Phevor, identified 73% of causal variants in the top 10 candidates and 59% in the top 2. GEM, Phevor and Exomiser prioritize results by patient phenotypes (provided as HPO terms) in addition to variant pathogenicity, whereas VAAST only utilizes genotype data, explaining its lower performance. Thus, these data also highlight that patient phenotypes improve the diagnostic performance of automated interpretation tools.

Next, we investigated whether the diagnostic performance of GEM extended to Mendelian diseases other than those of NICU infants, such as patients with later disease onset, less severe presentations, or with data produced by other variant calling pipelines or outpatient genetic clinics. For these analyses, we compiled a validation cohort largely consisting of WES cases from five different academic medical centers (Table1; Supp. Table 2). The diagnostic performance of GEM in the validation cohort was almost identical to that in the benchmark cohort (Fig. 1B). These data demonstrated that the diagnostic performance of GEM was not dependent of disease severity, age of onset, or genomic sequencing or variant detection methods.

An implication of these findings is that GEM achieved 97% recall (true positive rate) by review of 10 genes, whereas the other tools had < 78% recall by similar review (Fig. 1,Supp. Fig. 2). In part, this difference reflected the unique ability of GEM to prioritize SVs. Excluding SV cases, GEM, Phevor and Exomiser achieved recall of 97%, 83% and 76%, respectively, by review of 10 genes (Supp. Fig. 3A). Furthermore, VAAST and Exomiser failed to provide rankings for 4 and 18 true positive variants, respectively. Exclusion of false negatives and SV cases increased the top 10 recall of Exomiser to 93% (Supp. Fig. 3B), in agreement with previous reports [52]. These data show the importance of including all types of cases and causal variants in benchmarking to avoid overestimation of diagnostic performance in real-world clinical applications.

• Download figure
• Open in new tab

Figure 2. Comparison of GEM performance with manually curated and CNLP-derived HPO terms.

Distribution of ranks for causal genes, (A); GEM Bayes Factors for causal genes, (B); and number of candidates (hits) at BF≥0.69 threshold (moderate support), (C). The black line in the graphs denotes the median. The asterisks represent statistical difference between the groups with p<0.0001 from a two-tailed Wilcoxson matched-pairs signed rank test (ranks showed no statistically significant difference).

• Download figure
• Open in new tab

Figure 3. Impact of missing data and mis-phenotyping on GEM performance.

Causal gene rank, (A); Bayes Factors for causal genes, (B); and number of candidates (hits) above gene BF≥0.69 threshold (moderate support), (C) under standard conditions, withdrawing ClinVar information, and permuting HPO terms extracted by CNLP. The black line in the graphs denotes the median.

Scoring of structural variants increases diagnostic rate

Another major barrier to the incorporation of SV calls into genome diagnostic interpretation, whether manual or using eCDSS, is their low precision (high false positive, FP, rates) in short read alignments, with typical FP rates of 20-30% [53,54]. This leads to overwhelmingly time-consuming, manual assessment of event quality and significance for large numbers of SVs. GEM minimizes the effect of low precision by scoring SVs either with SV calls provided in the proband’s input VCF file, and/or by inferring ab initio their existence from metadata associated with SNV and indel calls (“Methods”; see below). The benchmark cohort included 20 cases in which SVs were reported to be causative, reflecting a similar incidence to that in real world experience (Fig. 1A. Table 2) [20–23]. In 17 of these, the causative SV was ranked first by GEM. In two, it was ranked second, and in one it was listed fourth, demonstrating that GEM retains adequate diagnostic performance with imprecise SV calls. The disease-causing SVs in the benchmark set ranged from small (4kb) to very large (e.g., entire chromosome arms). In three cases the diagnosis was of an autosomal recessive disorder in which the SV was compound heterozygous with a SNV/indel. In each, GEM integrated the two variants correctly, automatically identifying the causative diplotypes (Supp. Fig. 5). With regard to the diagnostic specificity of GEM, the mean and median number of gene-candidates for these probands with BF > 0 (any support) was 8.7 and 9.5, respectively, which was similar to probands whose VCF files contained no SVs, causative or otherwise.

• Download figure
• Open in new tab

Figure 5. Trade-off between GEM gene scores, maximal true positive rates, and number of candidates for review.

GEM gene scores are Bayes factors (BF) that can be used speed case review. (A) Gene maximal true positive rate achieved at the different BF thresholds (Y-axis). (B) Median number of candidate genes for review at each BF threshold. As the BF threshold is decreased, true positive rate increases while, the number of candidates to review remains manageable. Input HPO terms for this analysis where extracted by CNLP.

Large SVs frequently affect more than one gene. For consistency with other variant classes, genes within multigenic SVs are grouped and sorted by GEM based upon the gene-centric Bayes Factor score associated with the overlap of the proband phenotype and known Mendelian disorders (if any) associated with them (“Methods”). For example, Supp. Fig. 4 shows an example that highlights the practical utility of prioritizing genes harboring causative SVs together with SNVs and short indels in the same report, rather than separately cross-referencing with databases of microdeletion syndromes [55]. While it is often unknown which genes harbored in a pathogenic SV are causal for microdeletion/microduplication syndromes, GEM’s gene-by-gene rankings typically agreed with causal gene candidates suggested by the literature (asterisks in Table 2).

• Download figure
• Open in new tab

Figure 4. Comparative performance of parent offspring-trios or duos versus singleton probands.

Causal gene rank, (A); Bayes Factors, (B); and number of candidates (hits) above gene BF ≥ 0.69 moderate support), (C) for 63 cases analyzed as parent-offspring trios (n=59) or duos (n=4), as compared with analysis as single probands, using both manually curated or CNLP-derived HPO terms. The black line in the graphs denotes the median. No statistically significance difference between the any Manual/CNLP groups was found between trios versus single-probands using the two-tailed Wilcoxson matched-pairs signed rank test.

By default, GEM evaluates every gene and transcript for the presence of overlapping SVs. Notably, four benchmark cases did not include externally called SVs in their input VCFs (these had been previously diagnosed by manual inspection and orthogonal confirmatory tests; Table 2). Nevertheless, GEM inferred the existence of these four SVs using its ab initio SV identification algorithm, and evaluated them jointly with SNVs and indels (“Methods”). To further demonstrate this innovative functionality, we removed all external SV calls from each input VCF file of the 14 WGS cases (as GEMs ab initio SV imputation is currently limited to WGS data), and reran GEM. GEM re-identified 13 of the 14 of the causative SVs. Athough GEM’s inferred SV termini were imprecise, an overlapping SV of the same class (duplication, deletion, or CNV) and ploidy to that in the original VCF was inferred, and the same high scoring gene and mode of inheritance/genotype (autosomal dominant, simple recessive, or compound heterozygote) was ranked 1^st. SV recall within the top 1, 5, and 10 ranked GEM results were 71%, 86%, and 93%, respectively. The single false negative was a small (4kb) homozygous deletion. GEM failed to identify this SV because it did not span sites with known variation in the gnomAD database [46], upon which ab initio SV inference is based (“Methods”). With regard to specificity, the mean and median number of results with genes with BF > 0 in these cases was 10.6 and 12.5, respectively. These values differed only slightly from the results obtained using external SV calls (8.7 and 9.5, respectively), despite the fact every gene and transcript was evaluated for the presence of SVs.

Collectively, these results demonstrate the accuracy of GEM’s ab initio approach to identification and prioritization of SVs without recourse to external calls and databases of known causative SVs. Thus, GEM compensates, in part, for the low recall of SVs from short-read sequences. If an external SV calling pipeline fails to detect an SV, there is still the possibility that GEM will identify it via this ab initio approach. This capability, together with GEM’s ability to accurately prioritize SVs in the context of SNVs and short indels, addresses an unmet need for clinical applications. This characteristic also makes GEM well suited for re-analyses older cases and/or pipelines lacking SV calling.

Leveraging automated phenotyping from clinical natural language processing

Ontology-based phenotype descriptions, using Human Phenotype Ontology (HPO) terms [43], are widely used to communicate the observed clinical features of disease in a machine-readable format. These lists of terms are usually derived by manual review of patient EHR data by trained personnel, a time-consuming, subjective process. A solution is automatic extraction of patient phenotypes from clinical notes using clinical natural language processing (CNLP) [28,56]. One challenge has been that CNLP generates many more terms than by manual extraction. Thus, manual curation yielded an average of 4 HPO terms (min = 1, max = 12) in the benchmark cohort, while CNLP yielded an average of 177 HPO terms (min = 2, max = 684). Some of the extra CNLP terms are hierarchical parent terms of those observed, raising the concern that their inclusion diminishes the average information content in a manner that could impede diagnosis [27]. To investigate the effect of CNLP-derived HPO terms on GEM’s performance, we analyzed the benchmark cohort both with HPO terms extracted by commercial CNLP (“Methods”) and manually extracted HPO terms.

Fig. 2 shows the distributions and medians for ranks and GEM gene scores of true positives, as well as the number of gene candidates with BF ≥ 0.69 (moderate support), for manual and CNLP terms. The median rank of the causal gene with GEM did not significantly differ with CNLP- and manually-derived phenotype descriptions (Fig. 2A). The median GEM gene score with CNLP-derived phenotypes of true positives was higher than with manual phenotypes (Fig. 2B). The number of candidates above the BF threshold was higher with manual phenotypes than CNLP (Fig. 2C). CNLP rescued a few true positives with low ranks and negative BF scores compared to manual phenotype descriptions (Fig. 2A and B). These results demonstrate that GEM performs somewhat better with CNLP-derived phenotype descriptions as part of an automated interpretation workflow, than with sparse, manual phenotypes.

Resilience to mis-phenotyping and gaps in clinical knowledge

Given the potentially noisy nature of the CNLP phenotype descriptions, it was important to examine the sensitivity of GEM is to mis-phenotyping. To address this question, we randomly permuted CNLP-extracted HPO terms between cases, weighting by term frequency within the cohort, so that every case maintained the same number of HPO terms as CNLP originally provided. Permuting HPO terms resulted in lower gene scores, and several cases would have been lost for review had the gene score threshold of BF ≥ 0 still been used, but ranks are unaffected (98% in top 10; Fig. 3). This represented lower bound estimates, as actual mis-phenotyping (short of data tracking issues) would be much less. It is also worth noting that even using randomly permuted phenotype descriptions, GEM’s performance still exceeded that of Phevor and Exomiser using the correct phenotypes (Supp. Fig. 2). We therefore conclude that GEM is resilient to mis-phenotyping.

We also evaluated the impact of gaps in clinical knowledge on GEM performance by withdrawing annotations from a key clinical database, ClinVar. Absence of ClinVar annotations had minimal impact in ranking, although it reduced median gene scores (1.1 vs. 2.7), resulting in 9 cases no longer meet the minimum Bayes Factor threshold ≥ 0 (any support; Fig. 3). Clearly, ClinVar provided GEM with valuable information. Nonetheless, without ClinVar, GEM’s top 10 maximal recall (88%) still exceeded that of Phevor (72%) and Exomiser (65%; Fig. 1). More broadly, these results show that integrating more datatypes in GEM improves diagnostic performance and results in greater algorithmic stability (Figs. 2 and 3).

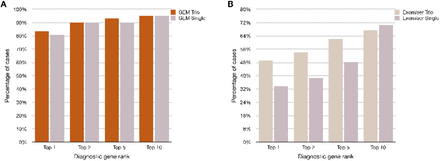

GEM performs equivalently on parent-offspring trios and single probands

Parent-offspring trios are widely used for molecular diagnosis of rare genetic disease. While a recent study showed that singleton proband sequencing returned a similar diagnostic yield as trios [57], interpretation of trio sequences is less labor intensive. For example, trios enable facile identification of de novo variants, which is the leading mechanism of genetic disease in outbred populations [58]. Likewise, in recessive disorders, proband compound heterozygosity can be automatically distinguished from two variants in cis. However, these benefits are associated with increased sequencing costs. Moreover, both parents are not always available for sequencing or do not wish to have their genomes sequenced.

To understand how GEM performs in the absence of parental data, we reanalyzed the 63 trio and duo cases from the benchmark cohort as singleton proband cases. Surprisingly, we observed insignificant differences in the mean rank of the causal gene (Fig. 4A), GEM score of the causal gene (Fig. 4B), or number of candidates with BF ≥ 0.69 (Fig. 4C), using either using manually or CNLP extracted HPO terms. In contrast, this re-analysis was associated with a decline in the performance of Exomiser (Supp. Fig. 6). These analyses demonstrated that GEM was resilient to the absence of parental genotypes, a feature that could increase the cost effectiveness and adoption of WGS.

• Download figure
• Open in new tab

Figure 6. Performance of GEM condition-match scores for diagnostic nomination.

(A) Ranks for reported diagnostic conditions for the benchmark dataset, using a GEM gene BF score ≥ 0.69 and sorted by CM score, for HPO terms derived from CNLP or manual curation. (B) Receiver-operator characteristic curves for the condition-match (CM) score for all hits with BF ≥ 0. CNLP All: HPO extracted from clinical notes by CNLP; AUC=0.91. Manual: Manually curated HPO terms; AUC=0.88. CNLP Multiple Dx: CNLP-derived CM score for the true positive disorder versus the other possible disorders associated with that gene; AUC=0.68. Manual Multiple Dx: As for CNLP-derived CM, but using manually curated HPO terms; AUC=0.69.

GEM scores optimize case review workflows

Conventional prioritization algorithms rank variants, enabling manual reviewers to start with the top ranked variants, and work their way down in the list until a convincing variant is identified for further curation, classification, and possible clinical reporting. This review process typically involves: a) assessing variant quality, deleteriousness, and prior clinical annotations; b) evaluating whether there is a reasonable match between the phenotypes exhibited by the patient and those reported for condition(s) known to be associated with defects in the corresponding gene, and c) considering the match in mode(s) of inheritance reported in the literature for the candidate disease and the patient’s diplotype.

GEM accelerates this process, because it intrinsically considers variant quality, deleteriousness, prior clinical annotations, and mode of inheritance. Furthermore, at manual review, GEM gene scores summarize the relative strength of evidence supporting the hypothesis that the gene is damaged and that this explains the proband’s phenotype. GEM scores provide a logical framework for setting thresholds with regard to the optimal number of candidates that should be reviewed to achieve a desired diagnostic rate. This enables laboratory directors and clinicians to dynamically set optimal tradeoffs of interpretation time and diagnosis rate for specific patients, relative to their suspicion of a genetic etiology or results of other diagnostic tests.

We examined the effect of different BF thresholds on recall (true positive rate) and median number of gene candidates for review in the benchmark cohort (Fig. 5). In such analyses, it is germane to consider the concept of maximal true positive rate (or recall) to measure the theoretical proportion of true positive diagnoses recoverable by perfect interpretation when reviewing a set of N genes containing the true positive. For example, in the benchmark dataset, a GEM causal gene score threshold ≥ 0 would retain a median of ten candidates for review and provide a 99% maximal recall; whereas a threshold of ≥ 0.5 would retain a median of four candidates for review for a 97% maximal recall (Fig. 5).

These results illustrate how a tiered approach to case review using GEM gene scores could minimize the number of candidate genes to review, and, thereby manual interpretation effort. For example, a first pass review of candidates with a gene BF ≥ 0.69 provided an expected 95% diagnostic rate (and a corresponding median of 3 genes to be manually reviewed). If followed by a second pass using a threshold > 0, if no convincing candidates are found, an additional 4% possible diagnoses would be recovered, involving review of a median increment of seven genes. Application of this two-tiered approach to the benchmark dataset of 119 cases (Fig. 1), required manual final review of 395 candidate genes (3 genes in 115 cases and 10 genes in 5 cases), or an average of 3.3 candidate genes per case, for a maximal recall of 99%. Finally, review of candidates with BF <0 recovered the last true positive in the benchmark cohort (COL4A4, ranked 40^th in the GEM report with a BF=-0.6. This case was a phenotypically and genotypically atypical autosomal dominant presentation of Alport syndrome 2 (MIM 203780).

Clinical Decision Support for Diagnosis

Quantifying how well the observed phenotypes in a patient match the expected phenotypes of Mendelian conditions associated with a candidate gene is challenging for clinical reviewers and is a major interpretation bottleneck. In practice, clinicians look for patterns of phenotypes, biasing their observations. In addition, patient phenotypes evolve as disease progresses. And there is considerable, disease-specific heterogeneity in the range of expected phenotypes. Simply comparing exact matches of the patient’s observed HPO terms with those expected for that disease is suboptimal, because the observed and expected HPO terms are often hierarchical neighbors, rather than exact matches. Missing terms, particularly those considered pathognomonic for a condition, and “contradictory” terms further complicate such comparisons by clinicians. Thus, generation of quantitative, standardized, unbiased models of disease similarity has proven elusive. GEM can automate or provide clinical decision support for this process via a condition-match (CM) score (“Methods”). The GEM CM score summarizes the match between observed and expected HPO phenotypes for genetic diseases, and considers the known mode(s) of inheritance, associated gene(s), their genome location(s), proband sex, the pathogenicity of observed diplotypes, and ClinVar annotations. Importantly, CM scores reflect relationships between phenotype terms as expressed in the HPO ontology graph, enabling inclusion of imprecise matches in similarity comparisons. CM scores can be used in a wide variety of clinical settings to prioritize and quickly assess possible Mendelian conditions as candidate diagnoses, a process we term diagnostic nomination.

Specific, definitive, genetic disease diagnosis remains a significant challenge for clinical reviewers, even with the short, highly informative candidate gene lists provided by tools such as GEM. This is because many genes are associated with more than one Mendelian disease. For example, application of a GEM causal gene score threshold ≥ 0.69 to the 119 benchmarking probands results in a median of 3 gene candidates per proband (c.f. Fig. 5), associated with a maximal gene recall of 95%. However, because many genes are associated with more than one disease, clinical reviewers would actually need to consider around 12 candidate Mendelian conditions per proband (data not shown). This difficulty is exacerbated by the fact that most laboratory directors are not physicians and lack formal training in clinical diagnosis.

Determination of a specific, definitive genetic disease diagnosis among several candidates can be accomplished with a combination of GEM CM scores and causal gene scores (Fig. 6). Using the benchmark cohort’s true (reported) gene and disorder diagnoses as ground truth, we used a GEM gene score threshold ≥ 0.69 to recover gene candidates, and the associated CM scores to rank order the diseases associated with those gene candidates (Fig. 6A). Using CNLP-derived phenotypes, the true disease diagnosis was the top nomination by CM score in 75% of cases, within the top 5 in 91% of cases, and within the top 10 in 95% of cases. Performance was inferior with manually extracted phenotype terms. The area under the receiver-operator characteristic (ROC) curves (AUCs) were 0.90 and 0.88, for CNLP and Manual terms, respectively (Fig. 6B). This implied that the larger number of CNLP extracted terms conveyed greater information content, permitting better discrimination of the correct diagnostic condition, than sparse, manually extracted phenotypes [27].

In the benchmark dataset, 58 of the 100 candidate genes (excluding cases with causal, multigenic SVs) were associated with 2 or more disorders (median of 3 gene-disorder, maximum of 15; Supp. Fig. 7 shows the example of ERCC6). We measured how well the CM score distinguished between multiple, alternative disorders associated with the same gene (Fig. 6B). In these 58 cases, the AUC was less than that for CNLP with the entire set of candidate genes in the benchmark dataset (0.68 vs 0.9). This decrease can be at least partially explained by the high similarity (and in some cases identity) of the clinical features of different disorders associated with the same gene. Thus, a combination of GEM gene and CM scores can refine candidate disorders for clinical reporting, further reducing review times.

Re-analysis of previously undiagnosed cases

Recent reports show that re-analysis of older undiagnosed cases suspected of rare genetic disease can yield new diagnoses supported by incremental increases in knowledge of pathogenic variants, disease-gene discoveries, and reports of phenotype expansion for known disorders [59,60]. While worthwhile, there are barriers to re-analysis, such as limited reimbursement and low incremental diagnostic yield, that limit use to physician requests. Ideally, all negative cases would be re-analyzed automatically periodically, and a subset with high likelihood new findings would be prioritized for manual review. The strong correlation between true positive rates and GEM gene scores (Fig. 5) suggested a strategy for triaging re-analyzed cases for manual review: only cases for which the recalculated GEM score had increased sufficiently to suggest a high probability of a new diagnosis would pass the threshold for manual review. Likewise, GEM condition match scores could be used to search all prior cases to identify the subset of undiagnosed cases with support for particular Mendelian conditions, aiding cohort assembly for targeted re-analysis based upon particular proband phenotypes, or for review by particular medical specialists. Of note, an advantage of CNLP is that it is possible to automatically generate a new clinical feature list at time of re-analysis. This is particularly important in disorders whose clinical features evolve with time and where the observed features may be nondescript at presentation.

To test the utility of GEM for re-analysis, we selected 14 difficult cases that had received negative WGS by RCIGM. For these reanalyzes, we used CNLP-derived HPO terms (Table 3) and a more stringent gene BF threshold ≥ 1.5 to restrict the search to very strongly supported candidates. Ten cases yielded no hits. Four cases returned a total of 7 candidate genes. Review of three cases did not return new diagnoses. In the remaining case, a new likely diagnosis was made of autosomal dominant Shwachman-Diamond Syndrome (MIM: 260400) or severe congenital neutropenia (MIM: 618752) [61,62], both of which are associated with pathogenic variants in SRP54. The respective CM scores using 261 CNLP-derived terms were relatively high (0.893 and 0.672, respectively). The association of SRP54 and these disorders was first reported in November 2017 [61] and entered in OMIM in January 2020 [63], which explained why it was not identified as the diagnosis originally in July 2017. Assuming de novo occurrence, the identified p.Gly108Glu variant was classified as likely pathogenic (meeting PM2, PM1, PP3 and PM6 of the ACMG guidelines). This was a singleton proband sequence and confirmation is being pursued. Thus, GEM re-analysis of 14 negative cases led to 7 gene-disorder reviews (an average of 0.5 per case), and yielded one likely new diagnosis, which was consistent with prior re-analysis yields [59,60].
