Light propagation within N95 Filtered Face Respirators: A simulation study for UVC decontamination

Abstract

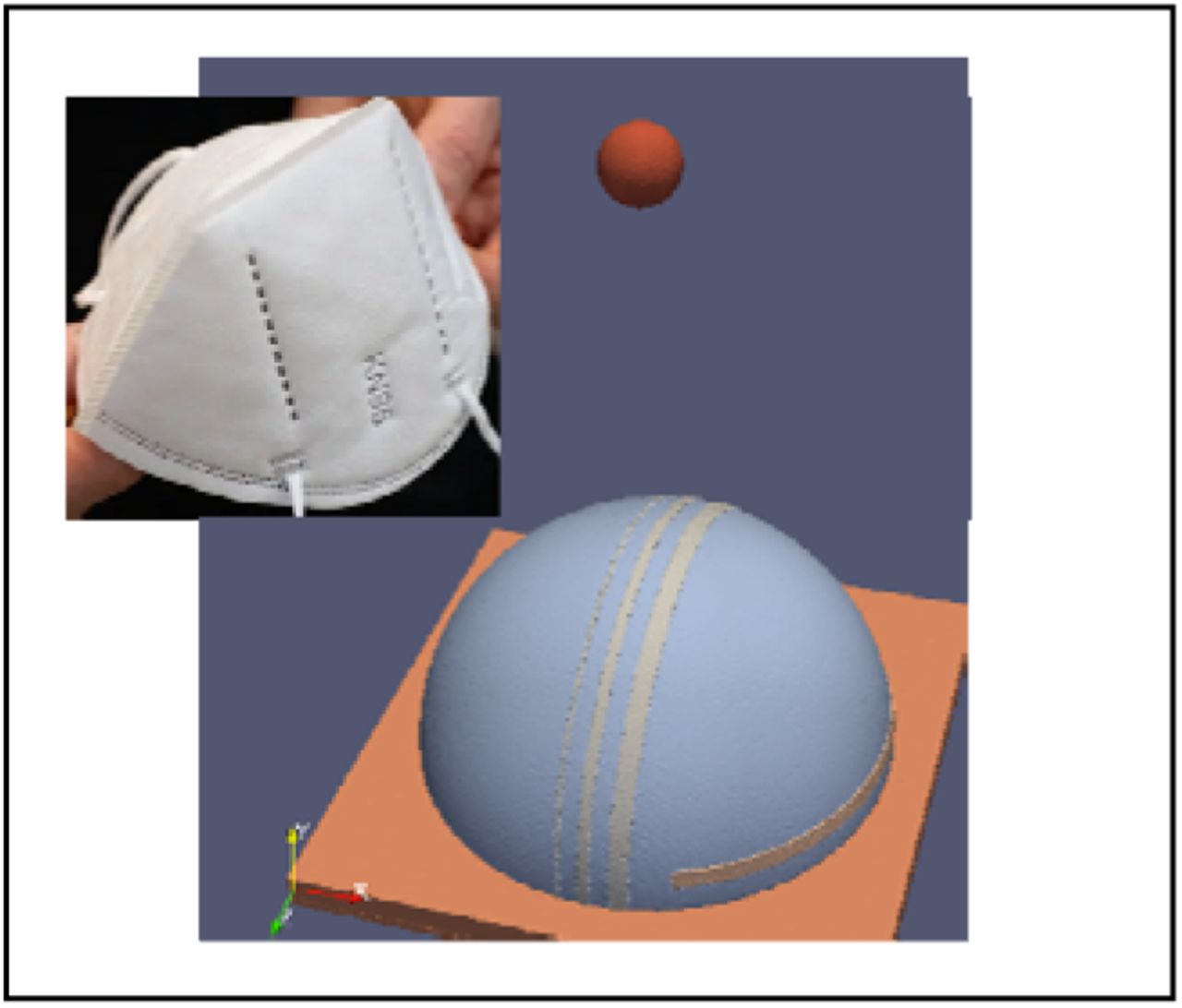

This study presents numerical simulations of UVC light propagation through seven different filtered face respirators (FFR) to determine their suitability for UV germicidal inactivation (UVGI). UV propagation was modelled using the FullMonte program for two external light illuminations. The optical properties of the dominant three layers were determined using the inverse adding doubling method.

The resulting fluence rate volume histograms and the lowest fluence rate recorded in the modelled volume, sometimes in the nW cm^-2, provide feedback on a respirator’s suitability for UVGI and the required exposure time for a given light source. While UVGI can present an economical approach to extend an FFR’s useable lifetime, it requires careful optimization of the illumination setup and selection of appropriate respirators.

• Download figure
• Open in new tab

Competing Interest Statement

The authors have declared no competing interest.

Funding Statement

Funding for this study was provided through the Ontario Ministry of Economic Development and Trade, through the Ontario Research Fund Grant ORF RE08 022 and Princess Margaret Cancer Centre, the Princess Margaret Cancer Foundation, and Ontario Ministry of Health, NSERC/Intel Industrial Research Chair in Programmable Silicon IRC:428842 16 and an IBM Faculty Research Award.
