Virtual brain grafting: Enabling whole brain parcellation in the presence of large lesions

View ORCID ProfileAhmed M. Radwan, View ORCID ProfileLouise Emsell, View ORCID ProfileJeroen Blommaert, View ORCID ProfileAndrey Zhylka, Silvia Kovacs, View ORCID ProfileTom Theys, View ORCID ProfileNico Sollmann, View ORCID ProfilePatrick Dupont, View ORCID ProfileStefan Sunaert
doi: https://doi.org/10.1101/2020.09.30.20204701
Ahmed M. Radwan
1KU Leuven, Department of Imaging and Pathology, Translational MRI, Leuven, Belgium
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Ahmed M. Radwan
  • For correspondence: ahmed.radwan{at}kuleuven.be
Louise Emsell
1KU Leuven, Department of Imaging and Pathology, Translational MRI, Leuven, Belgium
2KU Leuven, Department of Geriatric Psychiatry, University Psychiatric Center, Leuven, Belgium
3KU Leuven, Leuven brain institute (LBI), Department of Neurosciences, Leuven, Belgium
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Louise Emsell
Jeroen Blommaert
4KU Leuven, Department of Oncology, Leuven, Belgium
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Jeroen Blommaert
Andrey Zhylka
5Department of Biomedical Engineering, Eindhoven University of Technology
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Andrey Zhylka
Silvia Kovacs
6UZ Leuven, Department of Radiology, Leuven, Belgium
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
Tom Theys
3KU Leuven, Leuven brain institute (LBI), Department of Neurosciences, Leuven, Belgium
7KU Leuven, Department of Neurosciences, Research Group Experimental Neurosurgery and Neuroanatomy, Leuven, Belgium
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Tom Theys
Nico Sollmann
8Department of Diagnostic and Interventional Neuroradiology, Klinikum rechts der Isar, Technische Universität München, Munich, Germany
9TUM-Neuroimaging Center, Klinikum rechts der Isar, Technische Universität München, Munich, Germany
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Nico Sollmann
Patrick Dupont
3KU Leuven, Leuven brain institute (LBI), Department of Neurosciences, Leuven, Belgium
10KU Leuven, Laboratory for Cognitive Neurology, Department of Neurosciences, Leuven, Belgium
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Patrick Dupont
Stefan Sunaert
1KU Leuven, Department of Imaging and Pathology, Translational MRI, Leuven, Belgium
3KU Leuven, Leuven brain institute (LBI), Department of Neurosciences, Leuven, Belgium
6UZ Leuven, Department of Radiology, Leuven, Belgium
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Stefan Sunaert
  • Abstract
  • Full Text
  • Info/History
  • Metrics
  • Supplementary material
  • Data/Code
  • Preview PDF
Loading

Abstract

Brain atlases and templates are at the heart of neuroimaging analyses, for which they facilitate multimodal registration, enable group comparisons and provide anatomical reference. However, as atlas-based approaches rely on correspondence mapping between images they perform poorly in the presence of structural pathology. Whilst several strategies exist to overcome this problem, their performance is often dependent on the type, size and homogeneity of any lesions present. We therefore propose a new solution, referred to as Virtual Brain Grafting (VBG), which is a fully-automated, open-source workflow to reliably parcellate MR images in the presence of a broad spectrum of focal brain pathologies, including large, bilateral, intra- and extra-axial, heterogeneous lesions with and without mass effect.

The core of the VBG approach is the generation of a lesion-free T1-weighted input image which enables further image processing operations that would otherwise fail. Here we validated our solution based on Freesurfer recon-all parcellation in a group of 10 patients with heterogeneous gliomatous lesions, and a realistic synthetic cohort of glioma patients (n=100) derived from healthy control data and patient data.

We demonstrate that VBG outperforms a non-VBG approach assessed qualitatively by expert neuroradiologists and Mann-Whitney U tests to compare corresponding parcellations (real patients U(6,6) = 33, z = 2.738, P < .010, synthetic patients U(48,48) = 2076, z = 7.336, P < .001). Results were also quantitatively evaluated by comparing mean dice scores from the synthetic patients using one-way ANOVA (unilateral VBG = 0.894, bilateral VBG = 0.903, and non-VBG = 0.617, P < .001). Additionally, we used linear regression to show the influence of lesion volume, lesion overlap with, and distance from the Freesurfer volumes of interest, on labelling accuracy.

VBG may benefit the neuroimaging community by enabling automated state-of-the-art MRI analyses in clinical populations, for example by providing input data for automated solutions for fiber tractography or resting-state fMRI analyses that could also be used in the clinic. To fully maximize its availability, VBG is provided as open software under a Mozilla 2.0 license (https://github.com/KUL-Radneuron/KUL_VBG).

Figure
  • Download figure
  • Open in new tab

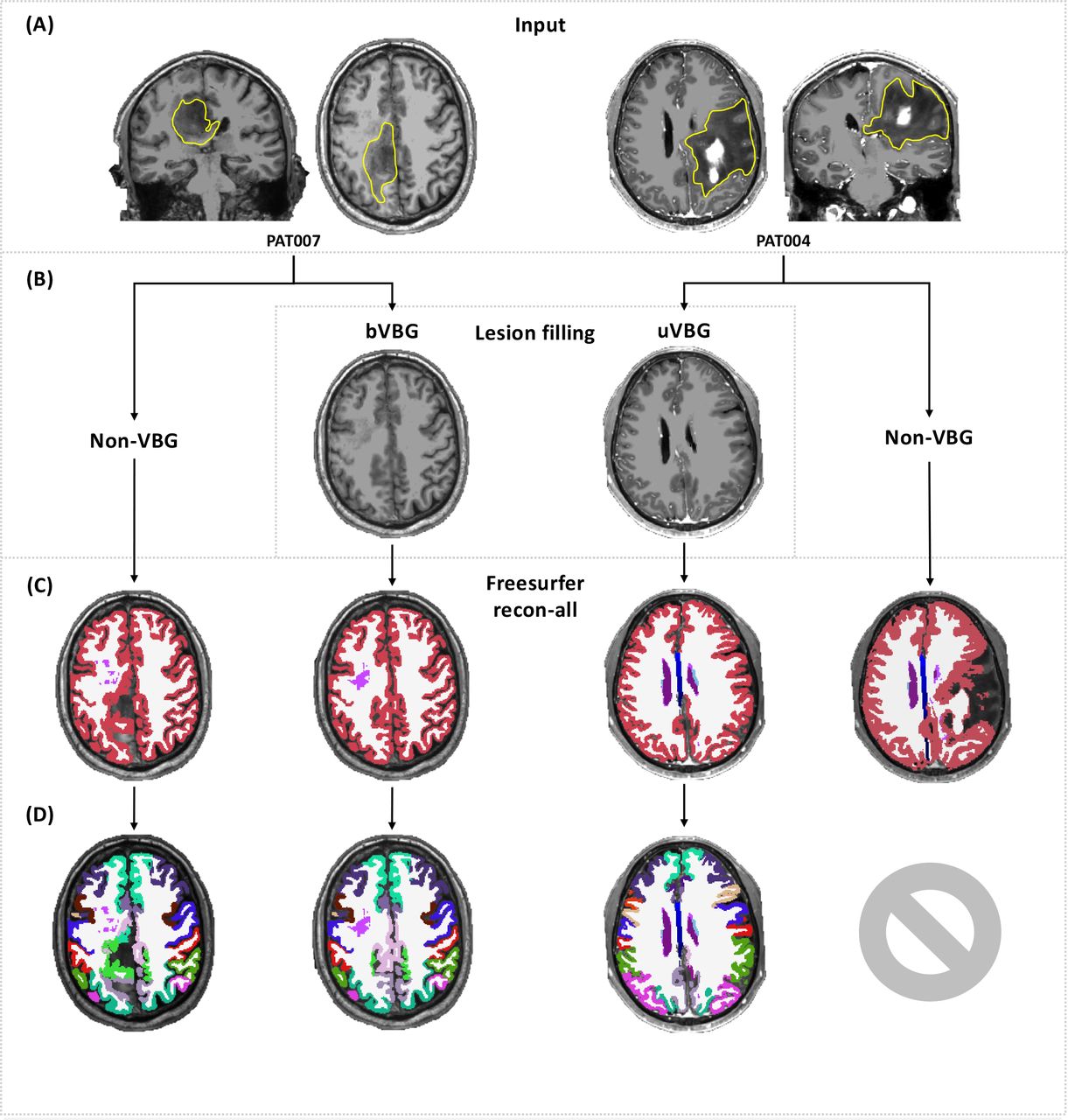

Graphical abstract:

(A) shows T1 images from two patients with gliomatous lesions. VBG is a lesion replacement/filling workflow with one approach for unilateral lesions (uVBG) and another for bilateral lesions (bVBG). (B) shows the recon-all approach selected, (C) & (D) show the output, tissue segmentations (C) and whole brain parcellations (D). If VBG is not used (non-VBG) recon-all may finish with some errors in the parcellations (left) or fail to generate a parcellation entirely (right). However, using either VBG method allows recon-all to complete where it had previously failed and also improves parcellation quality.

Competing Interest Statement

The authors have declared no competing interest.

Funding Statement

LE is supported by the research foundation Flanders FWO, grant no. G0C0319N, and KU Leuven Sequoia Fund. JB is an aspirant researcher for the FWO grant no. 11B9919N.

Author Declarations

I confirm all relevant ethical guidelines have been followed, and any necessary IRB and/or ethics committee approvals have been obtained.

Yes

The details of the IRB/oversight body that provided approval or exemption for the research described are given below:

Research ethics committee at UZ/KU Leuven, Leuven, Belgium, study number S61759, conducted in accordance with the Declaration of Helsinki.

All necessary patient/participant consent has been obtained and the appropriate institutional forms have been archived.

Yes

I understand that all clinical trials and any other prospective interventional studies must be registered with an ICMJE-approved registry, such as ClinicalTrials.gov. I confirm that any such study reported in the manuscript has been registered and the trial registration ID is provided (note: if posting a prospective study registered retrospectively, please provide a statement in the trial ID field explaining why the study was not registered in advance).

Yes

I have followed all appropriate research reporting guidelines and uploaded the relevant EQUATOR Network research reporting checklist(s) and other pertinent material as supplementary files, if applicable.

Yes

Data Availability

Imaging data in this study are not available for sharing due to patient privacy reasons. The parcellation and statistical data that supports the findings of this study are available for sharing upon request from the authors. The shell script used for the workflow described is openly available via https://github.com/KUL-Radneuron/KUL_VBG under a Mozilla 2.0 license.

https://github.com/KUL-Radneuron/KUL_VBG
