Risk heterogeneity in compartmental HIV transmission models of ART as prevention in Sub-Saharan Africa: A scoping review

Jesse Knight, Rupert Kaul, Sharmistha Mishra
doi: https://doi.org/10.1101/2021.03.29.21254586

Abstract

Background Transmission models provide complementary evidence to clinical trials about the potential population-level incidence reduction attributable to ART (ART prevention impact). Different modelling assumptions about risk heterogeneity may influence projected ART prevention impacts. We sought to review representations of risk heterogeneity in compartmental HIV transmission models applied to project ART prevention impacts in Sub-Saharan Africa.

Methods We systematically reviewed studies published before January 2020 that used non-linear compartmental models of sexual HIV transmission to simulate ART prevention impacts in Sub-Saharan Africa. We summarized data on model structure/assumptions (factors) related to risk and intervention heterogeneity, and explored multivariate ecological associations of ART prevention impacts with modelled factors.

Results Of 1384 search hits, 94 studies were included. 64 studies considered sexual activity stratification and 39 modelled at least one key population. 21 studies modelled faster/slower ART cascade transitions (HIV diagnosis, ART initiation, or cessation) by risk group, including 8 with faster and 4 with slower cascade transitions among key populations versus the wider population. In ecological analysis of 125 scenarios from 40 studies (subset without combination intervention), scenarios with risk heterogeneity that included turnover of higher risk groups were associated with smaller ART prevention benefits. Modelled differences in ART cascade across risk groups also influenced the projected ART benefits, including: ART prioritized to key populations was associated with larger ART prevention benefits. Of note, zero of these 125 scenarios considered lower ART coverage among key populations.

Conclusion Among compartmental transmission models applied to project ART prevention impacts in Sub-Saharan Africa, representations of risk heterogeneity and projected impacts varied considerably. Inclusion/exclusion of risk heterogeneity with turnover, and intervention heterogeneity across risk groups could influence the projected impacts of ART scale-up. These findings highlight a need to capture risk heterogeneity with turnover and cascade heterogenetiy when projecting ART prevention impacts.

1 Introduction

As of 2019, two thirds (25.7 million) of all people living with HIV globally were in Sub-Saharan Africa (SSA), where an estimated one million new HIV infections were acquired in 2019 [1]. HIV treatment to reduce onward transmission remains a key element of combination HIV prevention [2]. Following empirical evidence of partnership-level efficacy of ART in preventing HIV transmission [3, 4, 5], and model-based evidence of “treatment as prevention” [6, 7, 8], several large-scale community-based trials of universal test-and-treat (UTT) were recently completed. These trials found that over 2-to-4 years, cumulative incidence under UTT did not significantly differ from cumulative incidence under ART according to national guidelines [9, 10, 11]. Thus the population-level reductions in incidence anticipated from transmission modelling were not observed in these trials [12, 13].

One theme in the proposed explanations for limited population-level ART prevention effectiveness was heterogeneity in intervention coverage and its intersection with heterogeneity in transmission risks [14, 12]. While viral suppression improved under UTT in all three trials, 21–54% of study participants remained unsuppressed [11, 9, 10]. Populations experiencing barriers to viral suppression under UTT may be at highest risk for acquisition and onward transmission, including key populations such as women and men engaged in sex work, and men who have sex with men [15, 16]. Data suggest subgroups not formally described as key populations, such as youth, and men who have sex with women, including clients of sex workers, may also experience barriers to engagement in ART care [17, 18, 19]. Indeed, data suggest UTT scale-up in practice has not reach subgroups equally [20].

Risk heterogeneity can be defined by various factors affecting acquisition and onward transmission risk, and is a well-established determinant of the emergence and persistence of HIV epidemics [21, 22]. Systematic model comparison studies by Hontelez et al. [23] and Rozhnova et al. [24] found that projected prevention impacts of ART scale-up were smaller when more heterogeneity was captured in the model. Given the upstream and complementary role of transmission modelling in estimating the prevention impacts of ART [7, 25], we sought to examine how heterogeneity in risk and ART uptake has been represented in mathematical models used to assess the prevention impacts of ART scale-up in SSA. We conducted a scoping review and ecological regression with the following objectives. Among non-linear compartmental models of sexual HIV transmission used to simulate the prevention impacts of ART in SSA:

  1. In which epidemic contexts (geographies, populations, epidemic phases) have these models been applied?

  2. How was the model structured to represent key factors of risk heterogeneity?

  3. What are the potential influences of representations of risk heterogeneity on the projected prevention benefits of ART in the overall population?

2 Methods

We conducted a scoping review according to the PRISMA extension for scoping reviews (Appendix D).

2.1 Conceptual Framework for Risk Heterogeneity

We defined “factors of risk heterogeneity” as epidemiological phenomena and stratifications of populations, rates, or probabilities which may/not be included in transmission models. We defined 4 domains in which such factors might influence the transmission impact of ART:

  • Biological Effects: differential transmission risk within HIV disease course that may coincide with differential ART coverage [26]

  • Behaviour Change Effects: differential transmission risk due to behavioural changes related to engagement in the ART cascade [27, 28]

  • Network Effects: differential transmission risk within sub-populations that increases the challenge of epidemic control through core group dynamics [22, 29, 30]

  • Cascade Effects: differential transmission risk within sub-populations who experience barriers to ART care and achieving viral suppression, such as youth and key populations [31, 32, 15, 20]

We then compiled a list of key factors of risk heterogeneity, and their possible mechanisms of influence on ART prevention impact (Table 1).

View this table:
Table 1:

Factors of heterogeneity in HIV transmission and their possible mechanisms of influence on the prevention impact of ART interventions

2.2 Search

We searched MEDLINE and EMBASE via Ovid using search terms related to Sub-Saharan Africa (SSA), HIV, and transmission modelling (Table A.1). Search results were de-duplicated and screened by title and abstract in Covidence [43], followed by full-text screening using the criteria below. One reviewer (JK) conducted the search, screening, and data extraction.

2.2.1 Inclusion/Exclusion Criteria

Table A.2 lists complete inclusion/exclusion criteria and related definitions. We included peer-reviewed, primary modelling studies that used non-linear compartmental models of sexual HIV transmission to project the prevention impacts of ART in any setting within SSA. We included studies published in English anytime before Jan 1, 2020, that simulated at least one scenario with increasing ART coverage, possibly alongside other interventions. The included studies formed Dataset A, used to complete objectives 1 and 2. A subset of Dataset A formed Dataset B, used to complete objective 3. Studies in Dataset B met three additional criteria: 1) examined scale-up of ART coverage alone (versus combination intervention); 2) examined ART intervention for the whole population (versus ART prioritized to subgroups); and 3) reported HIV incidence reduction and/or cumulative HIV infections averted relative to a base-case scenario reflecting status quo.

2.3 Data Extraction

Data extraction used the full text and all available supplementary material. Data were extracted per-study for objectives 1 and 2, and per-scenario for objective 3, possibly including multiple time horizons. Detailed variables definitions are given in Appendix B.

2.3.1 Epidemic Context

For objective 1, we extracted data on geography, epidemic phase, and key populations explicitly considered in the model. We categorized studies by country, SSA region, and scale of the simulated population (city, sub-national, national, regional). We classified epidemic size at time of ART intervention using overall HIV prevalence (low: <1%, medium: 1-10%, high: >10%), and epidemic phase using overall HIV incidence trend (increasing, increasing-but-stabilizing, stable/equilibrium, decreasing-but-stabilizing, and decreasing).

We extracted whether any of the following key populations were modelled: female sex workers (FSW); male clients of FSW (Clients); men who have sex with men (MSM); transgender individuals; people who inject drugs (PWID); and prisoners. FSW were defined as any female activity group meeting 3 criteria: <5% of the female population; <1/3 the client population size; and having >50× the partners per year of the lowest sexually active female activity group [44, 42]. Clients were defined as any male activity group described as clients of FSW, and being >3× the FSW population size. We also extracted whether any groups in the model were described as MSM, transgender, PWID, or prisoners.

2.3.2 Factors of Risk Heterogeneity

For objective 2, we examined if/how the factors of risk heterogeneity outlined in Table 1 were simulated in each study. We examined the number of risk groups defined by sex/gender and/or sexual activity, and any turnover of individuals between activity groups and/or key populations.

We classified how partnership types were defined: generic (all partnerships equal); based only on the activity groups involved; or overlapping, such that different partnership types could be formed between the same two activity groups. We extracted whether partnerships considered different numbers of sex acts and condom use, and whether models simulated any degree of assortative mixing by activity groups (preference for like-with-like) versus proportionate (random) mixing. The number of age groups was extracted, and whether mixing by age groups was proportionate, strictly assortative, or assortative with age differences. We extracted whether age conferred any transmission risk beyond mixing, such as different partnership formation rates.

Finally, we extracted whether rates of HIV diagnosis, ART initiation, and/or ART discontinuation differed across risk strata (sex/gender, activity, key populations, and/or age), and if so, how they differed.

2.3.3 Prevention Impact of ART Scale-Up

For objective 3, we extracted the following data for each intervention scenario within Dataset B: the years that ART scale-up started (t0) and stopped (tf); the final overall ART coverage achieved and/or the final ART initiation rate (per person-year among PLHIV not yet in care); the criteria for ART initiation (e.g. CD4 count); and the relative reduction in transmission probability on ART. Then, we extracted the relative reduction in incidence and/or proportion of infections averted relative to the base-case scenario for available time horizons since t0.

We conducted an ecological analyses across all modelled scenarios to examine the relationship between factors of risk heterogenetiy and projected ART impacts, adjusting for other factors that could influence impacts. For each factor of risk heterogeneity, we compared projected ART impacts (incidence reduction/infections averted) across different factor levels (whether or not, and how the factor was modelled). We estimated the effect of each factor level on ART impacts using linear multivariate regression, with generalized estimating equations [45] to control for clustering due to multiple estimates per study/scenario. Time since t0 was included as a covariate, and two variables were removed due to missingness. No variable selection was used to avoid biasing effect estimates [46]. We also plotted impacts versus time since t0, stratified by factor levels.

3 Results

The search yielded 1384 publications, of which 94 studies were included (Figure 1). These studies (Dataset A, Appendix A.3) applied non-linear compartmental modelling to simulate ART scale-up in SSA, of which 40 reported infections averted/incidence reduction due to population-wide ART scale-up without combination intervention, relative to a base-case reflecting status quo (Dataset B).

Figure 1:
Figure 1:

PRISMA flowchart of study identification

3.1 Epidemic Context

Table 2 summarizes key features of contexts within SSA where the prevention impacts of ART have been modelled. 61 studies modelled HIV transmission at the national level; studies also explored regional (1), subnational (16), and city-level (16) epidemic scales. South Africa was the most common country simulated (52 studies); Figure C.1 illustrates the number of studies by country. East Africa was the most represented SSA region, being simulated in 77 studies, followed by Southern (72), West (28), and Central Africa (13).

View this table:
Table 2:

Summary of epidemic contexts within Sub-Saharan Africa where the prevention impacts of ART have been modelled

ART prevention impacts were most often modelled in high-prevalence (>10%) epidemics (41 studies) and medium-prevalence (1-10%) epidemics (23) (Figure C.2). No studies reported overall HIV prevalence of <1% at time of intervention, although for 30 studies, HIV prevalence was not reported or varied across simulated contexts/scenarios. The median [min, (IQR), max] year of intervention was 2014 [1990, (2010, 2015), 2040]; at which time HIV prevalence (%) was 15 [2, (6, 19), 32] (Figure C.2); and incidence (per 1000 person-years) was 14 [1, (9, 20), 50] (Figure C.3). Most reported incidence trends were decreasing or stable (45 of 48 reporting, Figure C.4).

3.1.1 Key Populations

FSW were explicitly modelled in 39 studies. Among these (of studies where it was possible to evaluate): 21 (of 25) were <5% of the female population; 14 (of 24) were <1/3 the size of the client population; and 15 (of 22) had >50× partners per year versus the lowest sexually active female activity group. Clients of FSW were modelled as a unique group in 31 studies, among which 8 (of 17 reporting) were >3× the size of the FSW population. In another 8 studies, clients were defined as a proportion of another group, among which 6 (of 7) were >3× the FSW population size. Studies explicitly modelled men who have sex with men (MSM) in 28 studies; transgender in 0; people who inject drugs (PWID) in 11; and prisoners in 2.

3.2 Heterogeneity Factors

3.2.1 Biological Effects

The median [min, (IQR), max] number of states used to represent HIV disease (ignoring treatment-related stratifications) was 5 [1, (3, 6), 25] (Figure C.5), and 2 studies represented HIV along a continuous dimension using partial differential equations. States of increased infectiousness associated with acute infection and late-stage disease were simulated in 68 and 74 studies, respectively.

The relative risk of HIV transmission on ART was 0.08 [0, (0.04, 0.13), 0.3] (Figure C.6), representing an average “on-treatment” state in 78 studies, versus a “virally suppressed” state in 15. Treatment failure due to drug resistance was simulated in 24 studies, including: 23 where individuals experiencing treatment failure were tracked separately from ART-naive; and 1 where such individuals transitioned back to a generic “off-treatment” state. Another 6 studies included a similar transition that was not identified as treatment failure versus ART cessation. Transmissible drug resistance was simulated in 9 studies.

3.2.2 Behavioural Effects

Reduced sexual activity during late-stage HIV was simulated in 25 studies, including at least one state with: complete cessastion of sexual activity (14); reduced rate/number of partnerships (9); and/or reduced rate/number of sex acts per partnership (6).

Separate health states representing diagnosed HIV before treatment, and on-treatment before viral suppression were simulated in 30 and 17 studies, respectively. 22 studies modelled behaviour changes following awareness of HIV+ status, including: increased condom use (12); fewer partners per year (4); fewer sex acts per partnership (3); serosorting (1); and/or a generic reduction in transmission probability (8).

ART cessation was simulated in 35 studies, including: 16 where individuals no longer on ART were tracked separately from ART-naive; and 19 where such individuals transitioned back to a generic “off-treatment” state. Another 6 studies included a similar transition that was not identified as treatment failure versus ART cessation.

3.2.3 Network Effects

Populations were stratified by activity (different rates and/or types of partnerships formed) in 59 studies, and by sex/gender in 64. The number of groups defined by sex/gender and/or activity was 6 [1, (2, 9), 19] (Figure C.7); and by activity alone (maximum number of groups among: women who have sex with men, men who have sex with women, MSM, or overall if sex/gender was not considered) was 3 [1, (1, 3), 18]. The highest activity groups for females and males (possibly including FSW/clients) comprised 2 [< 1, (2, 4), 23] and 9 [< 1, (2, 14), 35] % of female and male populations, respectively (Figures C.9 and C.10).

Turnover between activity groups and/or key populations was considered in 28 studies, of which 9 considered turnover of only one specific high-activity group or key population. Another 7 studies simulated movement only from lower to higher activity groups to re-balance group sizes against disproportionate HIV mortality.

Among 59 studies with activity groups, sexual mixing was modelled as assortative in 57 and proportionate in 2. Partnerships had equal probability of transmission in 39 studies, including all studies without activity groups. Partnerships were defined by the activity groups involved in 44 studies, among which transmission was usually lower in high-with-high activity partnerships than in low-with-low, due to fewer sex acts (31) and/or increased condom use (23). Transmission risk in high-with-low activity partnerships was defined by the: susceptible partner (9); lower activity partner (11); higher activity partner (3); or both partners’ activity groups (15); yielding indeterminate, higher, lower, or intermediate per-partnership transmission risk, respectively. Partnerships were defined based on overlapping types, such that different partnership types could be formed between the same two activity groups in 11 studies. All overlapping partnership types had differential total sex acts and condom use.

Age groups were simulated in 32 studies, among which, the number of age groups was 10 [2, (4, 34), 91] (Figure C.8), and 2 studies simulated age along a continuous dimension. Sexual mixing between age groups was assumed to be assortative either with (23) or without (3) average age differences between men and women; or proportionate (6). Differential risk behaviour by age was modelled in 29 studies.

3.2.4 Cascade Effects

Differential transition rates along the ART cascade were considered in 21 studies, including differences between genders in 15; age groups in 7; and key populations in 12. Another 2 studies did not simulate differential cascade transitions, but justified the decision using context-specific data. Differences between genders included rates of HIV diagnosis (11); ART initiation (6); and ART cessation (1), with cascade engagement higher among women, in most cases attributed to antenatal services. Differences between age groups also affected rates of diagnosis (6); ART initiation (1); but not ART cessation (0). Among key populations, lower rates of diagnosis, ART initiation, and retention were simulated in 0, 2, and 4 studies respectively, while higher rates were simulated in 8, 2, and 1.

Figure 2:
Figure 2: Effect estimates for selected factors of heterogeneity on incidence reduction (%, IR) and cumulative infections averted (%, CHI) from linear multivariate regression with generalized estimating equations.

Numerical results given in Table 3. KP: key populations. priority: modelled ART cascade transitions were faster in KP vs overall due to prioritized programs; same: cascade transitions were assumed the same in KP as overall; diff: cascade transitions were slower among men. Factor definitions are given in Appendix B.

3.3 ART Prevention Impact

Dataset B comprised 40 studies, including 125 scenarios of ART scale-up. Relative incidence reduction (IR) with ART scale-up as compared to status quo was reported in 23 studies (61 scenarios); proportion of cumulative infections averted (CIA) due to ART scale-up in 24 (75); and 7 (11) reported both. Some scenarios included multiple time horizons.

Table 3 summarizes projected ART prevention impacts (IR, CIA), stratified by heterogeneity and contextual factors, plus adjusted effect estimates for each factor from multivariate analysis. Figures C.11–C.19 illustrate unadjusted impacts stratified by factor levels, while Figures C.20 and 2 (subset) illustrate effect estimates. Compared to models with homogeneous risk, including risk heterogeneity via static activity groups but without key populations was associated with slightly higher impacts—adjusted effect (95% CI): 4 (−14, 22)% IR, 24 (12, 36)% CIA. Including key population(s) and assuming similar ART cascade across groups was also associated with higher impact: 72 (−31, 175)% IR, 20 (11, 28)% CIA. However, including turnover of one/more higher risk group(s) was associated with smaller ART prevention impacts: −82 (−153, −11)% IR, −86 (−103, −70)% CIA. Taken together, models that captured heterogenetiy in risk across activity groups and/or key population(s) with turnover were associated with reduced ART prevention impacts.

View this table:
Table 3:

Projected ART prevention impacts, stratified by factors of risk heterogeneity and contexts

After including risk heterogeneity, further capturing differential ART cascade across activity groups or key populations was associated with differences in projected ART prevention impacts. Models stratified by sex/gender, and those that captured lower ART cascade among men were associated with a smaller CIA: −49 (−62, −36)% and −125 (−143, −108)%, respectively; although similar effects were not observed for IR: −4 (−32, 23)% and 5 (−41, 50)%. Where key populations were expliciltly modelled, including ART cascade prioritized to any key population(s) was associated with increased impact, enough to overcome reductions due to turnover: 136 (73, 199)% IR, 131 (97, 166)% CIA. No studies in Dataset B examined lower ART cascade among key population(s).

4 Discussion

Model-based evidence continues to support evaluation and mechanistic understanding of ART prevention impacts. Such evidence may be sensitive to modelling assumptions about risk heterogeneity. Via scoping review, we found that stratification by sexual activity and key population(s) was considered in approximately 2/3 and 2/5 of studies to date, respectively; 1/3 considered risk group turnover and 1/4 considered differential ART cascade by any risk group. In multivariate ecological analysis, we found that projected incidence reductions and propoportions of infections averted were influenced by risk heterogeneity when risk group turnover and differential ART cascade were also considered.

Our findings suggest that the proportion of onward transmission prevented through ART may be reduced via turnover. Data suggest considerable within-person variability in sexual risk among key populations, including MSM, FSW, and clients of FSW [47, 48, 49], as well as in the wider population [50]. This risk variability is often reflected in compartmental models as risk group turnover. Previous modelling suggested that turnover could increase the prevention benefits of treatment [51]; however, the model in [51] was calibrated to overall equilibrium prevalence, allowing the reproduction number to decrease with increasing turnover. By contrast, when calibrating to group-specific prevalence with turnover, greater risk heterogeneity is inferred with versus without turnover, and the reproduction number may actually increase [41]. Turnover of higher risk groups can also reduce ART coverage in those groups through net outflow of treated individuals, and net inflow of susceptible individuals, some of whom then become infected [41]. Thus, mechanistically, turnover could reduce the transmission benefits of ART. These findings suggest that turnover is important to capture as part of modeling risk heterogeneity, and as such, models would benefit from surveys, cohorts, and repeated population size estimates that can provide data on individual-level trajectories of sexual risk, such as duration in sex work [29].

Most models assumed equal ART cascade transition rates across subgroups, including diagnosis, ART initiation, and retention. However, recent data suggest differential ART cascade by sex, age, and key populations [32, 52, 53, 20]. These differences may stem from the unique needs of subgroups and is one reason why differentiated ART services are a core component of HIV programs [18, 54]. Moreover, barriers to ART may intersect with transmission risk, particularly among key populations, due to issues of stigma, discrimination, and criminalization [55, 12]. Our ecological analysis estimated that differences in cascade by sex (lower among men) or risk (key populations prioritized) had a large influence on projected ART prevention benefits. Thus, opportunities exist to incorporate differentiated cascade data, examine the intersections of intervention and risk heterogeneity, and to consider the impact of HIV services as delivered on the ground. Similar opportunities were noted regarding modelling of pre-exposure prophylaxis in SSA [56]. Depending on the research question, the modelled treatment cascade may need to include more cascade steps and states related to treatment failure/discontinuation.

The next generation of ART prevention impact modelling can be advanced by leveraging rapid growth in data on risk heterogeneity and its intersection with intervention heterogeneity [57, 58, 59]. Key populations often reflect intersections of risk heterogeneity with turnover, and intervention heterogeneity (cascade differences), which together suggest the unmet needs of key populations play an important role in the overall dynamics of HIV transmission in SSA [60, 61]. Although none of the models in the review considered a lower ART cascade among key populations, data suggest large cascade differences, most notably lower proportions across the cascade, among key populations in SSA [31, 15, 52]. Similarly, we found that the number of modelled clients per female sex worker, and the relative rate of partnership formation among female sex workers versus other women did not always reflect available data syntheses for sex work [29, 42]. Among studies with different partnership types, only 1/5 modelled main/spousal partnerships—with more sex acts/lower condom use— between two higher risk individuals, while 4/5 modelled only casual/commercial partnerships among higher risk individuals. However, data suggest that female sex workers form main/spousal partnerships with regular clients and boyfriends/spouses from higher risk groups [42]. Improved modelling and prioritization of sevices designed to reach key populations will rely on continued investment in community-led data collection for hard-to-reach populations.

Our scoping review has several limitations. First, we examined key populations based as traditionally defined [40], based on social and economic marginalization and criminalization in SSA, and future work would benefit from examing risk heterogenetiy across more subgroups, such as mobile populations and adolescent girls and young women, where data suggest cascade disparities and risk heterogeneity [62, 63]. Second, our conceptual framework for risk heterogeneity did not explicitly examine heterogeneity related to anal sex, which is associated with higher probability of HIV transmission; nor did we examine structural risk factors like violence [64, 65]. Third, we did not extract whether models were calibrated, and if so, which parameters were fixed versus fitted. If certain parameters were fitted, it could explain some counterintuitive effect estimates. For example, modelling increased infectiousness in late-stage HIV was associated with reduced ART prevention impacts. However, in most studies, newly ART-eligible patients via scale-up had earlier stage HIV; therefore, such patients would have lower modelled infectiousness than late-stage HIV, and lower infectiousness than in a model with uniform infectiousness fitted to the same data. A similar mechanism could explain increased ART prevention impacts when including acute infection. Importantly, we conducted an ecological analysis, and within-model comparisons like [30, 23] that explore the influence of each key factor identified in this review would be an important next step.

In conclusion, model-based evidence of ART prevention impacts could likely be improved by: 1) capturinig risk heterogeneity with risk group turnover, as a determinant of inferred risk heterogeneity during model calibration, and to reflect challenges to maintaining ART coverage among risk groups with high turnover; 2) integrating data on differences in ART cascade between sexual risk groups, to reflect services as delivered on the ground; and 3) capturing heterogenetiy in risks related to key populations, to reflect intersections of transmission risk and barriers to HIV services that may undermine the prevention benefits of ART.

Data Availability

The extracted data and analysis code are available online via GitHub at the link below.

https://github.com/mishra-lab/sr-heterogeneity-hiv-models/

Conflicts of Interest

None declared.

Funding

The study was supported by the Natural Sciences and Engineering Research Council of Canada (NSERC CGS-D); Ontario Early Researcher Award No. ER17-13-043; and the Canadian Institutes of Health Research Foundation Grant (FN-13455).

Contributions

JK and SM conceptualized and designed the study, and developed the search strategy. JK performed the search, extracted the data, conducted the analysis, and generated the results. JK and SM drafted the manuscript and appendix. All authors (JK, RK, and SM) reviewed the results and contributed to writing the manuscript.

1WebPlotDigitizer: https://apps.automeris.io/wpd/

Acknowledgements

We thank: Kristy Yiu (Unity Health Toronto) for research coordination support; Linwei Wang (Unity Health Toronto) for feedback on elements of the paper; and Kaitlin Fuller (University of Toronto) for her help designing the search strategy.

appendix

A Search Strategy

We designed our search strategy with guidance from an information specialist at our affiliate library (KF).

A.1 Search Terms

Our search strategy and step-wise results are as follows, where term/ denotes a MeSH term, and .mp searches the main text fields, including title, abstract, and heading words. We searched MEDLINE and EMBASE via Ovid on 2020 March 20. Duplicate studies were removed automatically by Ovid and by Covidence; four additional duplicates with subtly different titles were later identified and removed manually.

View this table:
Table A.1:

Search terms and hits

A.2 Inclusion/Exclusion Criteria

View this table:
Table A.2:

Criteria for inclusion and exclusion

A.3 Included Studies

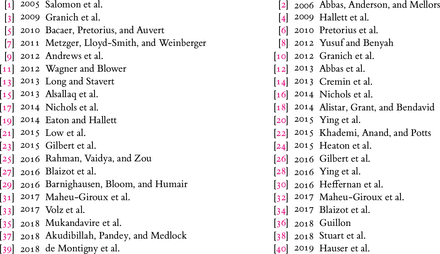

A.3.1 Dataset B

A.3.1

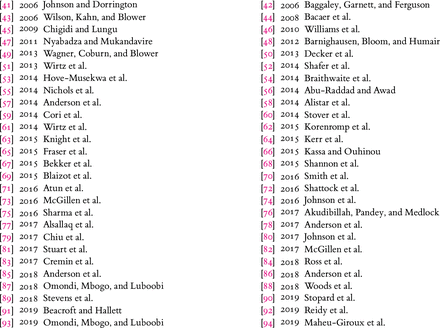

A.3.2 Dataset A less B

A.3.2

B Definitions & Extraction

Data were obtained from (in order of precedence): article text; article tables; article figures; appendix text; appendix tables; appendix figures; and likewise for articles cited like “the model is previously described elsewhere”. Data were assessed from figures with the help of a graphical measurement tool.1

Fitted Parameters: For the values of fitted parameters, we used the posterior value as reported, including the mean or median of the posterior distribution, or the best fitting value. If the posterior was not reported, we used the mean or median of the prior distribution, including the midpoint of uniform sampling ranges.

B.1 Epidemic Context

Let t0 be the time of ART scale-up/scenario divergence in the model.

HIV Prevalence: As reported in the context overall at t0: Low: <1%; Medium: 1-10%; High: >10%.

Epidemic Phase: As projected in the base-case scenario in the context overall between t0 and roughly t0 + 10 years: Increasing (linear or exponential); Increasing but stabilizing; Stable; Decreasing but stabilizing; Decreasing (linear or exponential).

Geographic Scale: For studies of one geographic context, scale was defined as one of: regional: multiple countries; national: one country; sub-national: smaller than a country but greater than a city; city: one city or less. For studies that consider multiple geographic contexts, scale was defined as multi-x, where x is the smallest geographically homogeneous scale considered from the list above.

Country: The countries counted were: Angola, Benin, Botswana, Burkina Faso, Burundi, Cameroon, Cape Verde, Central African Republic, Chad, Comoros, Democratic Republic of the Congo, Djibouti, Equatorial Guinea, Eritrea, eSwatini, Ethiopia, The Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Côte d’Ivoire, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritania, Mauritius, Mozambique, Namibia, Niger, Nigeria, Republic of the Congo, Reunion, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Tanzania, Togo, Uganda, Zambia, Zimbabwe. See Table A.1 for related search terms. If a study modelled multiple countries at a national scale or smaller, the counter for each country was incremented.

B.2 Risk Heterogeneity

B.2.1 Key Populations

Female Sex Workers: Any female activity group meeting 3 criteria: representing <5% of the female population; and being <1/3 the size of client population or highest non-MSM male activity group; and having >50 the partners of the lowest sexually active female activity group [95, 96, 97]. We also noted whether the authors described any activity groups as FSW. If it was not possible to evaluate any criteria due to lack of data, then we assumed the criteria was satisfied.

Clients of FSW: Any male activity group meeting 2 criteria: described as representing clients of FSW; being >3 the size of the FSW population [96]. If group sizes were not reported, then we assumed an activity group described as clients met the size criterion. We also noted whether clients were described as comprising a proportion of another male activity group.

Men who have Sex with Men: Any male activity group(s) described by the authors as MSM.

Transgender People: Any activity group(s) described by the authors as transgender.

People who Inject Drugs: Any activity group(s) described by the authors as PWID.

Prisoners: Any activity group(s) described by the authors as prisoners.

B.2.2 Activity Groups

Activity groups were defined as any stratification based on sex/gender and the number and/or types of partnerships formed, including key populations, but excluding stratifications by age.

Count: We counted the number of modelled activity groups in total, and separately for women who have sex with men, men who have sex with women, and MSM.

Highest Risk Group Size: The proportion of men and women in the highest risk group.

Turnover: Turnover refers to movement of individuals between activity groups and/or key populations reflecting sexual life course. We defined four classifications of turnover if activity groups were modelled: None: no movement between activity groups; High-Activity: only movement between one high activity group or key population and other activity group(s); Multiple: movement between multiple pairs of risk groups; Replacement: only movement from low to high activity to maintain high activity group size(s) against dispro-portionate HIV mortality.

B.2.3 Partnerships

Approaches: How studies defined partnerships, classified into one of three approaches: Generic: all partnerships are equal; By-Group: partnership types are defined only by the activity groups involved; Overlapping: multiple partnership types can be formed by the same pair of activity groups. Within By-Group, we classified how the parameters of the partnership were defined, as based on either: the susceptible partner; the lower activity partner; the higher activity partner; or some consideration of both partners.

Characteristics: Whether any of the following varied between different partnership types: Condom Use: proportion of sex acts protected; Total Sex: total number of sex acts, possibly defined by differences in partnership duration and/or frequency of sex.

Mixing: Mixing by activity group was classified as either: Proportionate: proportionate to the total number of partnerships offered by each risk group; Assortative: any degree of preferential partnership formation between individuals of the same or similar risk groups.

B.2.4 Age Groups

Count: The number of age groups considered in the model.

Risk: Whether age groups differed in any characteristic that conferred transmission risk (binary).

Mixing: We classified whether partnership formation between age groups was assumed to be: Proportionate: proportionate to the number of partnerships offered by each age group; Strictly Assortative: any degree of preferential partnership formation between individuals of the same or similar age groups that is equal for both sexes. Off-Diagonal: any degree of preferential partnership formation between younger women and older men.

B.3 HIV Natural History

Count: The number of states of HIV infection considered in the model, excluding stratifications related to treatment. If states were defined by both CD4 and viral load, then the count considers all unique combinations.

Acute Infection: Whether any state represented increased infectiousness associated with acute infection (binary).

Late-Stage Infection: Whether any state(s) considered increased infectiousness associated with late-stage infection (binary).

HIV Morbidity: Whether any state(s) considered decreased sexual activity associated with late-stage disease (binary), and how that decreased was modelled: Inactive: complete cessation of sexual activity; Partners: decreased rate of partnership formation; Sex Acts per Partnership: decreased frequency of sex per partnership; and/or Generic: representative decreased probability of transmission.

B.4 Antiretroviral Therapy

B.4.1 Transmission

Transmission Reduction due to ART: The relative reduction in probability of transmission (0 is perfect prevention, 1 is no effect) among individuals who are virally suppressed; if viral suppression was not explicitly modelled, then the relative reduction among individuals who are on treatment was used.

Transmitted Resistance: Any consideration of 1+ strains of HIV which are transmitted and for which ART had reduced benefits. We did not document the number of resistant strains, or characteristics of resistance and transmissibility.

B.4.2 Treatment Cascade States

Forward Cascade: We extracted whether each of the following states were included (binary): Diagnosed: aware of their HIV+ status, but have not yet started ART; Not Yet Virally Suppressed: started ART, but are not yet virally suppressed; Virally Suppressed: on ART and achieved viral suppression; and Generic On ART : simplifications of any/all of the above.

Stopping ART: We extracted whether individuals stopped ART, either due to: Treatment Failure: ART is no longer efficacious due to resistance; or ART Cessation: ART is discontinued for other reasons, such as barriers to access or side effects. We also extracted whether individuals stopping ART for either reason were tracked separately, or whether they re-entered a generic ART-naive state, such as “Diagnosed”.

Differential Cascade Transitions: We extracted whether rates of transitioning along the ART cascade, including: rate of HIV diagnosis; rate of ART initiation; and rate of ART cessation, differed by any of the following stratifications: sex; age; activity; and key populations. If the study did not mention possible differences in such rates, then we assumed that no differences were modelled.

B.4.3 Behaviour Change

HIV Counselling: Whether any sexual behaviour change associated with HIV testing and counselling was applied to individuals in the diagnosed and/or on-ART states (binary), and what changed: Condom Use: increased; Serosorting: any; Partners: decreased rate of partnership formation; Sex Acts per Partnership: decreased frequency of sex per partnership; and/or Generic: representative decreased probability of transmission due to counselling.

B.5 ART Prevention Impact

The following data were extracted per scenario, rather than per-study.

B.5.1 Intervention

ART Initiation Criteria: What criteria were used for ART eligibility as part of the intervention: Symptomatic (AIDS); CD4 < 200; CD4 < 350; CD4 < 500; All individuals; Other.

Intervention Population: Among which population sub-group(s) was the scale-up of ART coverage/initiation applied. Only scenarios with ART intervention for all individuals were included in Dataset B.

Impact Population: Among which population sub-group(s) was the ART prevention impact measured. Only scenarios measuring ART prevention impacts in all individuals were included in Dataset B.

ART Coverage Target: The proportion of people living with HIV in the intervention population who are on ART by the end of ART scale-up.

ART Initiation Rate Target: The rate at which people living with HIV in the intervention population initiate ART by the end of ART scale-up.

Intervention t0 and tf: The years at which ART scale-up as part of the intervention started and stopped, respectively. If interventions were modelled as instantaneous, such as increasing ART initiation rate, then we considered t0 = tf. Impact time horizons were measured relative to t0.

B.5.2 Impact

For both measures of ART prevention impact, we extracted reported values from the text for any available time horizon, as well as figure data for any of the following time horizons, if available: 5, 10, 15, 20, 30, and 40 years, with the help of a graphical measurement tool. If only absolute values were reported, we calculated the relative reductions manually. Where reported, we extracted confidence intervals for each outcome.

Relative Incidence Reduction: The relative reduction in overall annual HIV incidence (per 1000 person-years) in the intervention scenario as compared to the baseline scenario, both after an equal number of years since t0 (time horizon). For example, if the baseline and intervention scenarios predicted overall HIV incidence of 1 and 0.7 per 1000 person-years 5 years after t0, then the relative incidence reduction for the 5-year time horizon would be 30%.

Proportion of Infections Averted: The relative reduction in cumulative new HIV infections in the intervention scenario as compared to the baseline scenario, both after an equal number of years since t0 (time horizon). For example, if the baseline and intervention scenarios predicted 1000 and 700 new infections 5 years after t0, then the proportion of infections averted for the 5-year time horizon would be 30%.

C Supplemental Results

Additional information on data sources, analysis, and results are available in the public repository:

https://github.com/mishra-lab/sr-heterogeneity-hiv-models

C.1 Map

Figure C.1:
Figure C.1:

Map showing number of studies (of 94 total) applying HIV transmission modelling in each country vs the number of people living with HIV (PLHIV, millions)

C.2 Risk Heterogeneity

C.2.1 Distributions

The following figures illustrate the distributions (number of studies) of various parameter values and modelling assumptions related to factors of heterogeneity and intervention contexts.

Figure C.2:
Figure C.2:

HIV prevalence at t0 (%)

Figure C.3:
Figure C.3:

HIV incidence at t0 (per 1000 PY)

Figure C.4:
Figure C.4:

HIV epidemic phase

Figure C.5:
Figure C.5:

Number of HIV states

Figure C.6:
Figure C.6:

Relative infectiousness on ART

Figure C.7:
Figure C.7:

Number of activity groups

Figure C.8:
Figure C.8:

Number of age groups

Figure C.9:
Figure C.9:

Proportion of women in the highest female activity group

Figure C.10:
Figure C.10:

Proportion of men in the client or highest activity male group

C.3 ART Prevention Impact

The following figures illustrate the projected ART prevention impact (Dataset B), stratified by various factors of heterogeneity and intervention contexts (colours). Left panels show the relative HIV incidence reduction (IR); right panels show the proportion of cumulative HIV infections averted (CIA); both as compared to a base-case scenario reflecting status quo. If any study included multiple scenarios of ART scale-up, then each scenario was included separately; if any scenario reported multiple time horizons, each time horizon was included separately. The number of studies (scenarios) reporting incidence reduction, cumulative infections averted, both, or either was: 23 (61), 24 (75), 7 (11), and 40 (125), respectively. If any factor could not be quantified due to missing data or varying values, it was omitted from that plot. In box plots, the numbers of unique scenario time-horizons contributing to each box are given above it.

Figure C.11:
Figure C.11:

Risk Stratification & ART cascade differences

Figure C.12:
Figure C.12:

Any activity group turnover

Figure C.13:
Figure C.13:

Sex stratification & any ART cascade differences

Figure C.14:
Figure C.14:

Type of partnership definition

Figure C.15:
Figure C.15:

HIV prevalence at t0 (%)

Figure C.16:
Figure C.16:

HIV epidemic phase

Figure C.17:
Figure C.17:

CD4 initiation criteria

Figure C.18:
Figure C.18:

ART intervention coverage target

Figure C.19:
Figure C.19:

Relative infectiousness on ART

Figure C.20:
Figure C.20: Effect estimates for factors of heterogeneity on incidence reduction (%, IR) and cumulative infections averted (%, CHI) from linear multivariate regression with generalized estimating equations.

Numerical results given in Table 3. RR: relative risk; HTC: HIV testing and counselling; KP: key populations. priority: modelled ART cascade transitions were faster in KP vs overall due to prioritized programs; same: cascade transitions were assumed the same in KP as overall. Factor definitions are given in Appendix B.

Footnotes

  • Funding: The study was supported by the Natural Sciences and Engineering Research Council of Canada (NSERC CGS-D); Ontario Early Researcher Award No. ER17-13-043; and the Canadian Institutes of Health Research Foundation Grant (FN-13455).

  • Conflicts of Interest: None declared.

  • Added adjusted (regression) analysis; substantial revisions to the discussion and supplemental results.

References

  1. [1].↵
    UNAIDS. AIDSinfo. 2020.
  2. [2].↵
    WHO. Consolidated guidelines on the use of antiretroviral drugs for treating and preventing HIV infection. 2016.
  3. [3].↵
    J. D. Lundgren, A. G. Babiker, F. Gordin, et al. “How achievable is immediate ART for all?” In: The Lancet HIV 2.9 (Aug. 2015), pp. 795–807.
    OpenUrl
  4. [4].↵
    The TEMPRANO ANRS 12136 Study Group. “A Trial of Early Antiretrovirals and Isoniazid Preventive Therapy in Africa”. In: New England Journal of Medicine 373.9 (Aug. 2015), pp. 808–822.
    OpenUrlCrossRefPubMed
  5. [5].↵
    M. S. Cohen, Y. Q. Chen, M. McCauley, et al. “Antiretroviral Therapy for the Prevention of HIV-1 Transmission”. In: New England Journal of Medicine 375.9 (Sept. 2016), pp. 830–839.
    OpenUrlCrossRefPubMed
  6. [6].↵
    R. M. Granich, C. F. Gilks, C. Dye, et al. “Universal voluntary HIV testing with immediate antiretro-viral therapy as a strategy for elimination of HIV transmission: a mathematical model”. In: The Lancet 373.9657 (2009), pp. 48–57.
    OpenUrlCrossRef
  7. [7].↵
    J. W. Eaton, L. F. Johnson, J. A. Salomon, et al. “HIV treatment as prevention: Systematic comparison of mathematical models of the potential impact of antiretroviral therapy on HIV incidence in South Africa”. In: PLoS Medicine 9.7 (July 2012), e1001245.
    OpenUrl
  8. [8].↵
    A. Cori, H. Ayles, N. Beyers, et al. “HPTN 071 (PopART): A cluster-randomized trial of the population impact of an HIV combination prevention intervention including universal testing and treatment: Mathematical model”. In: PLoS ONE 9.1 (2014), e84511.
    OpenUrlCrossRefPubMed
  9. [9].↵
    D. V. Havlir, L. B. Balzer, E. D. Charlebois, et al. “HIV Testing and Treatment with the Use of a Community Health Approach in Rural Africa”. In: New England Journal of Medicine 381.3 (July 2019), pp. 219–229.
    OpenUrl
  10. [10].↵
    R. J. Hayes, D. Donnell, S. Floyd, et al. “Effect of universal testing and treatment on HIV incidence - HPTN 071 (popart)”. In: New England Journal of Medicine 381.3 (July 2019), pp. 207–218.
    OpenUrl
  11. [11].↵
    C. C. Iwuji, J. Orne-Gliemann, J. Larmarange, et al. “Universal test and treat and the HIV epidemic in rural South Africa: a phase 4, open-label, community cluster randomised trial”. In: The Lancet HIV 5.3 (Mar. 2018), e116–e125.
    OpenUrl
  12. [12].↵
    S. Baral, A. Rao, P. Sullivan, et al. “The disconnect between individual-level and population-level HIV prevention benefits of antiretroviral treatment”. In: The Lancet HIV 6 (July 2019), e632–638.
    OpenUrl
  13. [13].↵
    D. Havlir, S. Lockman, H. Ayles, et al. “What do the Universal Test and Treat trials tell us about the path to HIV epidemic control?” In: Journal of the International AIDS Society 23.2 (Feb. 2020), e25455.
    OpenUrl
  14. [14].↵
    S. S. Abdool Karim. “HIV-1 Epidemic Control - Insights from Test-and-Treat Trials”. In: New England Journal of Medicine 381.3 (July 2019), pp. 286–288.
    OpenUrlPubMed
  15. [15].↵
    A. J. Hakim, V. MacDonald, W. Hladik, et al. “Gaps and opportunities: measuring the key population cascade through surveys and services to guide the HIV response”. In: Journal of the International AIDS Society 21 (July 2018), e25119.
    OpenUrl
  16. [16].↵
    D. Nyato, S. Nnko, A. Komba, et al. “Facilitators and barriers to linkage to HIV care and treatment among female sex workers in a community-based HIV prevention intervention in Tanzania: A qualitative study”. In: PLoS ONE 14.11 (Nov. 2019), e0219032.
    OpenUrl
  17. [17].↵
    R. Arnesen, A. P. Moll, and S. V. Shenoi. “Predictors of loss to follow-up among patients on ART at a rural hospital in KwaZulu-Natal, South Africa”. In: PLoS ONE 12.5 (2017), e0177168.
    OpenUrlCrossRef
  18. [18].↵
    C. D. Chikwari, S. Dringus, and R. A. Ferrand. “Barriers to, and emerging strategies for, HIV testing among adolescents in sub-Saharan Africa”. In: Current Opinion in HIV and AIDS 13.3 (May 2018), pp. 257–264.
    OpenUrl
  19. [19].↵
    C. Quinn, D. T. Kadengye, C. C. Johnson, et al. “Who are the missing men? Characterising men who never tested for HIV from population-based surveys in six sub-Saharan African countries”. In: Journal of the International AIDS Society 22.10 (2019), e25398.
    OpenUrl
  20. [20].↵
    D. Green, D. M. Tordoff, B. Kharono, et al. “Evidence of sociodemographic heterogeneity across the HIV treatment cascade and progress towards 90-90-90 in sub-Saharan Africa - a systematic review and meta-analysis”. In: Journal of the International AIDS Society 23.3 (Mar. 2020).
  21. [21].↵
    R. M. Anderson, G. F. Medley, R. M. May, et al. “A preliminary study of the transmission dynamics of the Human Immunodeficiency Virus (HIV), the causative agent of AIDS”. In: Mathematical Medicine and Biology 3.4 (1986), pp. 229–263.
    OpenUrlCrossRefPubMed
  22. [22].↵
    M.-C. Boily and B. Masse. “Mathematical models of disease transmission: A precious tool for the study of sexually transmitted diseases”. In: Canadian Journal of Public Health 88.4 (1997), pp. 255–265.
    OpenUrlPubMedWeb of Science
  23. [23].↵
    J. A. C. C. Hontelez, M. N. Lurie, T. Barnighausen, et al. “Elimination of HIV in South Africa through Expanded Access to Antiretroviral Therapy: A Model Comparison Study”. In: PLoS Medicine 10.10 (Oct. 2013), e1001534.
    OpenUrl
  24. [24].↵
    G. Rozhnova, M. F. S. van der Loeff, J. C. M. Heijne, et al. “Impact of Heterogeneity in Sexual Behavior on Effectiveness in Reducing HIV Transmission with Test-and-Treat Strategy”. In: PLoS Computational Biology 12.8 (2016), e1005012.
    OpenUrl
  25. [25].↵
    W. Delva, D. P. Wilson, L. Abu-Raddad, et al. “HIV treatment as prevention: Principles of good HIV epidemiology modelling for public health decision-making in all modes of prevention and evaluation”. In: PLoS Medicine 9.7 (July 2012), e1001239.
    OpenUrl
  26. [26].↵
    C. D. Pilcher, H. C. Tien, J. J. Eron, et al. “Brief but efficient: Acute HIV infection and the sexual transmission of HIV”. In: Journal of Infectious Diseases 189.10 (May 2004), pp. 1785–1792.
    OpenUrl
  27. [27].↵
    S. Ramachandran, S. Mishra, N. Condie, et al. “How do HIV-negative individuals in sub-Saharan Africa change their sexual risk behaviour upon learning their serostatus? A systematic review”. In: Sexually Transmitted Infections 92.8 (Dec. 2016), pp. 571–578.
    OpenUrlAbstract/FREE Full Text
  28. [28].↵
    R. Tiwari, J. Wang, H. Han, et al. “Sexual behaviour change following HIV testing services: a systematic review and meta-analysis”. In: Journal of the International AIDS Society 23.11 (Nov. 2020).
  29. [29].↵
    C. Watts, C. Zimmerman, A. M. Foss, et al. “Remodelling core group theory: the role of sustaining populations in HIV transmission”. In: Sexually Transmitted Infections 86.S3 (Dec. 2010), pp. iii85–iii92.
    OpenUrlAbstract/FREE Full Text
  30. [30].↵
    P. J. Dodd, G. P. Garnett, and T. B. Hallett. “Examining the promise of HIV elimination by ‘test and treat’ in hyperendemic settings”. In: AIDS 24.5 (Mar. 2010), pp. 729–735.
    OpenUrlCrossRefPubMedWeb of Science
  31. [31].↵
    E. Mountain, S. Mishra, P. Vickerman, et al. “Antiretroviral therapy uptake, attrition, adherence and outcomes among hiv-infected female sex workers: A systematic review and meta-analysis”. In: PLoS ONE 9.9 (Sept. 2014), e105645.
    OpenUrlPubMed
  32. [32].↵
    K. E. Lancaster, D. Cernigliaro, R. Zulliger, et al. “HIV care and treatment experiences among female sex workers living with HIV in sub-Saharan Africa: A systematic review”. In: African Journal of AIDS Research 15.4 (Dec. 2016), pp. 377–386.
    OpenUrl
  33. [33].
    T. D. Hollingsworth, R. M. Anderson, and C. Fraser. “HIV-1 transmission, by stage of infection”. In: Journal of Infectious Diseases 198.5 (Sept. 2008), pp. 687–693.
    OpenUrl
  34. [34].
    M.-C. Boily, R. F. Baggaley, L. Wang, et al. “Heterosexual risk of HIV-1 infection per sexual act: systematic review and meta-analysis of observational studies”. In: The Lancet Infectious Diseases 9.2 (Feb. 2009), pp. 118–129.
    OpenUrlCrossRefPubMedWeb of Science
  35. [35].
    R. de Waal, R. Lessells, A. Hauser, et al. “HIV drug resistance in sub-Saharan Africa: public health questions and the potential role of real-world data and mathematical modelling.” In: Journal of virus eradication 4.S2 (Nov. 2018), pp. 55–58.
    OpenUrl
  36. [36].
    L. Myer, R. J. Carter, M. Katyal, et al. “Impact of antiretroviral therapy on incidence of pregnancy among HIV-infected women in Sub-Saharan Africa: A cohort study”. In: PLoS Medicine 7.2 (Feb. 2010), e1000229.
    OpenUrl
  37. [37].
    N. McGrath, L. Richter, and M. L. Newell. “Sexual risk after HIV diagnosis: A comparison of pre-ART individuals with CD4 > 500 cells/ αl and ART-eligible individuals in a HIV treatment and care programme in rural KwaZulu-Natal, South Africa”. In: Journal of the International AIDS Society 16.1 (Jan. 2013), p. 18048.
    OpenUrl
  38. [38].
    R. M. Anderson, R. M. May, M.-C. Boily, et al. “The spread of HIV-1 in Africa: Sexual contact patterns and the predicted demographic impact of AIDS”. In: Nature 352.6336 (1991), pp. 581–589.
    OpenUrlCrossRefPubMedWeb of Science
  39. [39].
    I. Birdthistle, C. Tanton, A. Tomita, et al. “Recent levels and trends in HIV incidence rates among adolescent girls and young women in ten high-prevalence African countries: a systematic review and meta-analysis”. In: The Lancet Global Health 7.11 (Nov. 2019), e1521–e1540.
    OpenUrl
  40. [40].↵
    WHO. Consolidated guidelines on HIV prevention, diagnosis, treatment and care for key populations. 2016.
  41. [41].↵
    J. Knight, S. D. Baral, S. Schwartz, et al. “Contribution of high risk groups’ unmet needs may be underestimated in epidemic models without risk turnover: A mechanistic modelling analysis”. In: Infectious Disease Modelling 5 (Jan. 2020), pp. 549–562.
    OpenUrl
  42. [42].↵
    F. Scorgie, M. F. Chersich, I. Ntaganira, et al. “Socio-demographic characteristics and behavioral risk factors of female sex workers in sub-Saharan Africa: A systematic review”. In: AIDS and Behavior 16.4 (May 2012), pp. 920–933.
    OpenUrlCrossRefPubMedWeb of Science
  43. [43].↵
    Veritas Health Innovation. Covidence systematic review software. 2020.
  44. [44].↵
    J. Vandepitte, R. Lyerla, G. Dallabetta, et al. “Estimates of the number of female sex workers in different regions of the world”. In: Sexually Transmitted Infections 82.S3 (June 2006).
  45. [45].↵
    U. Halekoh, S. Hojsgaard, and J. Yan. “The R package geepack for generalized estimating equations”. In: Journal of Statistical Software 15.2 (2006), pp. 1–11.
    OpenUrl
  46. [46].↵
    F. E. Harrell. Regression Modelling Strategies. New York: Springer, 2001.
  47. [47].↵
    E. Fazito, P. Cuchi, M. Mahy, et al. “Analysis of duration of risk behaviour for key populations: a literature review.” In: Sexually Transmitted Infections 88.S2 (2012), pp. i24–i32.
    OpenUrlAbstract/FREE Full Text
  48. [48].↵
    E. O. Romero-Severson, S. J. Alam, E. M. Volz, et al. “Heterogeneity in Number and Type of Sexual Contacts in a Gay Urban Cohort”. In: Statistical Communications in Infectious Diseases 4.1 (2012), p. 4.
    OpenUrl
  49. [49].↵
    E. Roberts, H. Ma, P. Bhattacharjee, et al. “Low program access despite high burden of sexual, structural, and reproductive health vulnerabilities among young women who sell sex in Mombasa, Kenya”. In: BMC Public Health 20.1 (May 2020).
  50. [50].↵
    B. Houle, S. A. Mojola, N. Angotti, et al. “Sexual behavior and HIV risk across the life course in rural South Africa: Trends and comparisons”. In: AIDS Care 30.11 (2018), pp. 1435–1443.
    OpenUrl
  51. [51].↵
    C. J. Henry and J. S. Koopman. “Strong influence of behavioral dynamics on the ability of testing and treating HIV to stop transmission”. In: Scientific Reports 5.1 (2015), p. 9467.
    OpenUrl
  52. [52].↵
    J. Stannah, E. Dale, J. Elmes, et al. “HIV testing and engagement with the HIV treatment cascade among men who have sex with men in Africa: a systematic review and meta-analysis”. In: The Lancet HIV 6.11 (Nov. 2019), e769–e787.
    OpenUrl
  53. [53].↵
    H. Ma, L. Wang, P. Gichangi, et al. “Venue-Based HIV Testing at Sex Work Hotspots to Reach Adolescent Girls and Young Women Living with HIV: A Cross-sectional Study in Mombasa, Kenya”. In: Journal of Acquired Immune Deficiency Syndromes 84.5 (Aug. 2020), pp. 470–479.
    OpenUrl
  54. [54].↵
    P. Ehrenkranz, A. Grimsrud, and M. Rabkin. “Differentiated service delivery: Navigating the path to scale”. In: Current Opinion in HIV and AIDS 14.1 (Jan. 2019), pp. 60–65.
    OpenUrl
  55. [55].↵
    K. F. Ortblad, J. M. Baeten, P. Cherutich, et al. “The arc of HIV epidemics in sub-Saharan Africa: New challenges with concentrating epidemics in the era of 90-90-90”. In: Current Opinion in HIV and AIDS 14.5 (Sept. 2019), pp. 354–365.
    OpenUrl
  56. [56].↵
    K. K. Case, G. B. Gomez, and T. B. Hallett. “The impact, cost and cost-effectiveness of oral pre-exposure prophylaxis in sub-Saharan Africa: a scoping review of modelling contributions and way forward”. In: Journal of the International AIDS Society 22.9 (Sept. 2019).
  57. [57].↵
    C. Beyrer, S. D. Baral, F. van Griensven, et al. “Global epidemiology of HIV infection in men who have sex with men”. In: The Lancet 380.9839 (July 2012), pp. 367–377.
    OpenUrl
  58. [58].↵
    S. D. Baral, C. Beyrer, K. Muessig, et al. “Burden of HIV among female sex workers in low-income and middle-income countries: A systematic review and meta-analysis”. In: The Lancet Infectious Diseases 12.7 (July 2012), pp. 538–549.
    OpenUrlCrossRefPubMedWeb of Science
  59. [59].↵
    S. Mishra, M.-C. Boily, S. Schwartz, et al. “Data and methods to characterize the role of sex work and to inform sex work programs in generalized HIV epidemics: evidence to challenge assumptions”. In: Annals of Epidemiology 26.8 (2016), pp. 557–569.
    OpenUrl
  60. [60].↵
    L.-G. Bekker, L. Johnson, F. Cowan, et al. “Combination HIV prevention for female sex workers: What is the evidence?” In: The Lancet 385.9962 (2015), pp. 72–87.
    OpenUrl
  61. [61].↵
    J. Stone, C. Mukandavire, M.-C. Boily, et al. “Estimating the contribution of key populations towards HIV transmission in South Africa”. In: Journal of the International AIDS Society 24.1 (Dec. 2021), e25650.
    OpenUrl
  62. [62].↵
    F. Tanser, T. Barnighausen, A. Vandormael, et al. “HIV treatment cascade in migrants and mobile populations”. In: Current Opinion in HIV and AIDS 10.6 (Nov. 2015), pp. 430–438.
    OpenUrl
  63. [63].↵
    R. C. Dellar, S. Dlamini, and Q. A. Karim. “Adolescent girls and young women: Key populations for HIV epidemic control”. In: Journal of the International AIDS Society 18.2 (2015), pp. 64–70.
    OpenUrl
  64. [64].↵
    J. G. Silverman. “Adolescent female sex workers: Invisibility, violence and HIV”. In: Archives of Disease in Childhood 96.5 (May 2011), pp. 478–481.
    OpenUrlAbstract/FREE Full Text
  65. [65].↵
    R. F. Baggaley, D. Dimitrov, B. N. Owen, et al. “Heterosexual Anal Intercourse: A Neglected Risk Factor for HIV?” In: American Journal of Reproductive Immunology 69.S1 (Feb. 2013), pp. 95–105.
    OpenUrl

References

  1. [1].
    J. A. Salomon, D. R. Hogan, J. Stover, et al. “Integrating HIV prevention and treatment: From slogans to impact”. In: PLoS Medicine 2.1 (2005), pp. 0050–0056.
    OpenUrl
  2. [2].
    U. L. Abbas, R. M. Anderson, and J. W. Mellors. “Potential impact of antiretroviral therapy on HIV-1 transmission and AIDS mortality in resource-limited settings.” In: Journal of Acquired Immune Deficiency Syndromes 41.5 (2006), pp. 632–41.
    OpenUrl
  3. [3].
    R. M. Granich, C. F. Gilks, C. Dye, et al. “Universal voluntary HIV testing with immediate antiretro-viral therapy as a strategy for elimination of HIV transmission: a mathematical model”. In: The Lancet 373.9657 (2009), pp. 48–57.
    OpenUrlCrossRef
  4. [4].
    T. B. Hallett, S. Dube, I. Cremin, et al. “The role of testing and counselling for HIV prevention and care in the era of scaling-up antiretroviral therapy”. In: Epidemics 1.2 (2009), pp. 77–82.
    OpenUrlCrossRefPubMed
  5. [5].
    N. Bacaer, C. Pretorius, and B. Auvert. “An Age-Structured Model for the Potential Impact of Generalized Access to Antiretrovirals on the South African HIV Epidemic”. In: Bulletin of Mathematical Biology 72.8 (2010), pp. 2180–2198.
    OpenUrlCrossRefPubMed
  6. [6].
    C. Pretorius, J. Stover, L. Bollinger, et al. “Evaluating the Cost-Effectiveness of Pre-Exposure Prophylaxis (PrEP) and Its Impact on HIV-1 Transmission in South Africa”. In: PLoS ONE 5.11 (2010), e13646.
    OpenUrlCrossRefPubMed
  7. [7].
    V. T. Metzger, J. O. Lloyd-Smith, and L. S. Weinberger. “Autonomous targeting of infectious superspreaders using engineered transmissible therapies”. In: PLoS Computational Biology 7.3 (2011), e1002015.
    OpenUrl
  8. [8].
    T. T. Yusuf and F. Benyah. “Optimal strategy for controlling the spread of HIV/AIDS disease: A case study of South Africa”. In: Journal of Biological Dynamics 6.2 (2012), pp. 475–494.
    OpenUrl
  9. [9].
    J. R. Andrews, R. Wood, L.-G. Bekker, et al. “Projecting the benefits of antiretroviral therapy for HIV prevention: the impact of population mobility and linkage to care.” In: The Journal of Infectious Diseases 206.4 (2012), pp. 543–51.
    OpenUrl
  10. [10].
    R. Granich, J. G. Kahn, R. Bennett, et al. “Expanding ART for Treatment and Prevention of HIV in South Africa: Estimated Cost and Cost-Effectiveness 2011-2050”. In: PloS ONE 7.2 (2012), e30216.
    OpenUrlCrossRefPubMed
  11. [11].
    W. G. Wagner and S. Blower. “Universal Access to HIV Treatment versus Universal ‘Test and Treat’: Transmission, Drug Resistance & Treatment Costs”. In: PLoS ONE 7.9 (2012), e41212.
    OpenUrlCrossRefPubMed
  12. [12].
    U. L. Abbas, R. Glaubius, A. Mubayi, et al. “Antiretroviral therapy and pre-exposure prophylaxis: Combined impact on HIV transmission and drug resistance in South Africa”. In: The Journal of Infectious Diseases 208.2 (2013), pp. 224–234.
    OpenUrl
  13. [13].
    E. F. Long and R. R. Stavert. “Portfolios of biomedical HIV interventions in South Africa: A cost-effectiveness analysis”. In: Journal of General Internal Medicine 28.10 (2013), pp. 1294–1301.
    OpenUrl
  14. [14].
    I. Cremin, R. Alsallaq, M. Dybul, et al. “The new role of antiretrovirals in combination HIV prevention: A mathematical modelling analysis”. In: AIDS 27.3 (2013), pp. 447–458.
    OpenUrlCrossRefPubMedWeb of Science
  15. [15].
    R. A. Alsallaq, J. M. Baeten, C. L. Celum, et al. “Understanding the Potential Impact of a Combination HIV Prevention Intervention in a Hyper-Endemic Community”. In: PLoS ONE 8.1 (2013), e54575.
    OpenUrlCrossRefPubMed
  16. [16].
    B. E. Nichols, R. Baltussen, J. H. van Dijk, et al. “Cost-effectiveness of PrEP in HIV/AIDS control in Zambia: A stochastic league approach”. In: Journal of Acquired Immune Deficiency Syndromes 66.2 (2014), pp. 221–228.
    OpenUrl
  17. [17].
    B. E. Nichols, K. C. E. Sigaloff, C. Kityo, et al. “Averted HIV infections due to expanded antiretroviral treatment eligibility offsets risk of transmitted drug resistance: A modeling study”. In: AIDS 28.1 (2014), pp. 73–83.
    OpenUrlCrossRefPubMedWeb of Science
  18. [18].
    S. S. Alistar, P. M. Grant, and E. Bendavid. “Comparative effectiveness and cost-effectiveness of antiretroviral therapy and pre-exposure prophylaxis for HIV prevention in South Africa”. In: BMC Medicine 12.1 (2014), p. 46.
    OpenUrl
  19. [19].
    J. W. Eaton and T. B. Hallett. “Why the proportion of transmission during early-stage HIV infection does not predict the long-term impact of treatment on HIV incidence”. In: Proceedings of the National Academy of Sciences of the United States of America 111.45 (2014), pp. 16202–16207.
    OpenUrlAbstract/FREE Full Text
  20. [20].
    R. Ying, M. Sharma, R. Heffron, et al. “Cost-effectiveness of pre-exposure prophylaxis targeted to high-risk serodiscordant couples as a bridge to sustained ART use in Kampala, Uganda”. In: Journal of the International AIDS Society 18.S3 (2015), p. 20013.
    OpenUrl
  21. [21].
    A. Low, N. Nagot, I. Konate, et al. “Potential impact of existing interventions and of antiretroviral use in female sex workers on transmission of HIV in Burkina Faso: A modeling study”. In: Journal of Acquired Immune Deficiency Syndromes 68.S2 (2015), S180–S188.
    OpenUrl
  22. [22].
    A. Khademi, S. Anand, and D. Potts. “Measuring the potential impact of combination HIV prevention in sub-Saharan Africa”. In: Medicine 94.37 (2015), e1453.
    OpenUrl
  23. [23].
    J. A. Gilbert, E. F. Long, R. P. Brooks, et al. “Integrating community-based interventions to reverse the convergent TB/HIV epidemics in rural South Africa”. In: PLoS ONE 10.5 (2015), e0126267.
    OpenUrl
  24. [24].
    L. M. Heaton, P. D. Bouey, J. Fu, et al. “Estimating the impact of the US President’s Emergency Plan for AIDS Relief on HIV treatment and prevention programmes in Africa”. In: Sexually Transmitted Infections 91.8 (2015), pp. 615–620.
    OpenUrlAbstract/FREE Full Text
  25. [25].
    S. M. A. Rahman, N. K. Vaidya, and X. Zou. “Impact of early treatment programs on HIV epidemics: An immunity-based mathematical model”. In: Mathematical Biosciences 280 (2016), pp. 38–49.
    OpenUrlCrossRef
  26. [26].
    J. A. Gilbert, S. V. Shenoi, A. P. Moll, et al. “Cost-effectiveness of community-based TB/HIV screening and linkage to care in rural South Africa”. In: PLoS ONE 11.12 (2016), e0165614.
    OpenUrl
  27. [27].
    S. Blaizot, D. Maman, B. Riche, et al. “Potential impact of multiple interventions on HIV incidence in a hyperendemic region in Western Kenya: A modelling study”. In: BMC Infectious Diseases 16.1 (2016), p. 189.
    OpenUrl
  28. [28].
    R. Ying, M. Sharma, C. L. Celum, et al. “Home testing and counselling to reduce HIV incidence in a generalised epidemic setting: a mathematical modelling analysis”. In: The Lancet HIV 3.6 (2016), e275–e282.
    OpenUrl
  29. [29].
    T. Barnighausen, D. E. Bloom, and S. Humair. “Human resources for treating HIV/AIDS: Are the preventive effects of antiretroviral treatment a game changer?” In: PLoS ONE 11.10 (2016), e0163960.
    OpenUrl
  30. [30].
    A. Heffernan, E. Barber, R. Thomas, et al. “Impact and cost-effectiveness of point-of-care CD4 testing on the HIV epidemic in South Africa”. In: PLoS ONE 11.7 (2016), e0158303.
    OpenUrl
  31. [31].
    M. Maheu-Giroux, J. F. Vesga, S. Diabate, et al. “Changing Dynamics of HIV Transmission in Cote d’Ivoire: Modeling Who Acquired and Transmitted Infections and Estimating the Impact of Past HIV Interventions (1976-2015)”. In: Journal of Acquired Immune Deficiency Syndromes 75.5 (2017), pp. 517–527.
    OpenUrl
  32. [32].
    M. Maheu-Giroux, J. F. Vesga, S. Diabate, et al. “Population-level impact of an accelerated HIV response plan to reach the UNAIDS 90-90-90 target in Cote d’Ivoire: Insights from mathematical modeling”. In: PLoS Medicine 14.6 (2017), e1002321.
    OpenUrl
  33. [33].
    E. M. Volz, N. Ndembi, R. Nowak, et al. “Phylodynamic analysis to inform prevention efforts in mixed HIV epidemics”. In: Virus Evolution 3.2 (2017), vex014.
    OpenUrl
  34. [34].
    S. Blaizot, H. Huerga, B. Riche, et al. “Combined interventions to reduce HIV incidence in KwaZuluNatal: a modelling study”. In: BMC Infectious Diseases 17.1 (2017), p. 522.
    OpenUrlCrossRef
  35. [35].
    C. Mukandavire, J. Walker, S. Schwartz, et al. “Estimating the contribution of key populations towards the spread of HIV in Dakar, Senegal”. In: Journal of the International AIDS Society 21.S5 (2018), e25126.
    OpenUrl
  36. [36].
    M. Guillon. “Success factors for universal access to antiretroviral treatments in South Africa”. In: The International Journal of Health Planning and Management 33.4 (2018), e1160–e1178.
    OpenUrl
  37. [37].
    G. Akudibillah, A. Pandey, and J. Medlock. “Optimal control for HIV treatment”. In: Mathematical Biosciences and Engineering 16.1 (2018), pp. 373–396.
    OpenUrl
  38. [38].
    R. M. Stuart, N. Fraser-Hurt, C. C. Kerr, et al. “The City of Johannesburg can end AIDS by 2030: Modelling the impact of achieving the Fast-Track targets and what it will take to get there: Modelling”. In: Journal of the International AIDS Society 21.1 (2018), e25068.
    OpenUrl
  39. [39].
    S. de Montigny, M.-C. Boily, B. R. Masse, et al. “Assessing the utility of the tipping point ratio to monitor HIV treatment programmes in the era of universal access to ART”. In: Infectious Disease Modelling 3 (2018), pp. 85–96.
    OpenUrl
  40. [40].
    A. Hauser, K. Kusejko, L. F. Johnson, et al. “Bridging the gap between hiv epidemiology and antiretroviral resistance evolution: Modelling the spread of resistance in south africa”. In: PLoS Computational Biology 15.6 (2019), e1007083.
    OpenUrl
  41. [41].
    L. F. Johnson and R. E. Dorrington. “Modelling the demographic impact of HIV/AIDS in South Africa and the likely impact of interventions”. In: Demographic Research 14 (2006), pp. 541–574.
    OpenUrl
  42. [42].
    R. F. Baggaley, G. P. Garnett, and N. M. Ferguson. “Modelling the Impact of Antiretroviral Use in Resource-Poor Settings”. In: PLoS Medicine 3.4 (2006), pp. 493–504.
    OpenUrl
  43. [43].
    D. P. Wilson, J. Kahn, and S. M. Blower. “Predicting the epidemiological impact of antiretroviral allocation strategies in KwaZulu-Natal: the effect of the urban-rural divide.” In: Proceedings of the National Academy of Sciences of the United States of America 103.38 (2006), pp. 14228–33.
    OpenUrlAbstract/FREE Full Text
  44. [44].
    N. Bacaer, R. Ouif ki, C. Pretorius, et al. “Modeling the joint epidemics of TB and HIV in a South African township”. In: Journal of Mathematical Biology 57.4 (2008), pp. 557–593.
    OpenUrl
  45. [45].
    E. Chigidi and E. M. Lungu. “Hiv model incorporating differential progression for treatment-naive and treatment-experienced infectives”. In: Mathematical Biosciences and Engineering 6.3 (2009), pp. 427–450.
    OpenUrl
  46. [46].
    B. G. Williams, R. Granich, K. M. De Cock, et al. “Antiretroviral therapy for tuberculosis control in nine African countries”. In: Proceedings of the National Academy of Sciences of the United States of America 107.45 (2010), pp. 19485–19489.
    OpenUrlAbstract/FREE Full Text
  47. [47].
    F. Nyabadza and Z. Mukandavire. “Modelling HIV/AIDS in the presence of an HIV testing and screening campaign”. In: Journal of Theoretical Biology 280.1 (2011), pp. 167–179.
    OpenUrl
  48. [48].
    T. Barnighausen, D. E. Bloom, and S. Humair. “Is treatment as prevention the new game-changer?: Costs and effectiveness”. In: Journal of the International AIDS Society 15.S3 (2012), p. 163.
    OpenUrl
  49. [49].
    B. G. Wagner, B. J. Coburn, and S. Blower. “Increasing survival time decreases the cost-effectiveness of using “test & treat” to eliminate HIV epidemics”. In: Mathematical Biosciences and Engineering 10.5-6 (2013), pp. 1673–1686.
    OpenUrl
  50. [50].
    M. R. Decker, A. L. Wirtz, C. Pretorius, et al. “Estimating the impact of reducing violence against female sex workers on HIV epidemics in Kenya and Ukraine: a policy modeling exercise.” In: American Journal of Reproductive Immunology 69 Suppl 1 (2013), pp. 122–132.
    OpenUrl
  51. [51].
    A. L. Wirtz, D. G. Walker, L. Bollinger, et al. “Modelling the impact of HIV prevention and treatment for men who have sex with men on HIV epidemic trajectories in low-and middle-income countries”. In: International Journal of STD and AIDS 24.1 (2013), pp. 18–30.
    OpenUrl
  52. [52].
    L. A. Shafer, R. N. Nsubuga, R. Chapman, et al. “The dual impact of antiretroviral therapy and sexual behaviour changes on HIV epidemiologic trends in Uganda: A modelling study”. In: Sexually Transmitted Infections 90.5 (2014), pp. 423–429.
    OpenUrlAbstract/FREE Full Text
  53. [53].
    S. D. Hove-Musekwa, F. Nyabadza, H. Mambili-Mamboundou, et al. “Cost-Effectiveness Analysis of Hospitalization and Home-Based Care Strategies for People Living with HIV/AIDS: The Case of Zimbabwe.” In: International Scholarly Research Notices 2014 (2014), p. 836439.
    OpenUrl
  54. [54].
    R. S. Braithwaite, K. A. Nucifora, C. Toohey, et al. “How do different eligibility guidelines for antiretroviral therapy affect the cost–effectiveness of routine viral load testing in sub-Saharan Africa”. In: AIDS 28.S1 (2014), S73–S83.
    OpenUrlCrossRefPubMed
  55. [55].
    B. E. Nichols, K. C. E. Sigaloff, C. Kityo, et al. “Increasing the use of second-line therapy is a cost-effective approach to prevent the spread of drug-resistant HIV: a mathematical modelling study”. In: Journal of the International AIDS Society 17 (2014), p. 19164.
    OpenUrl
  56. [56].
    L. J. Abu-Raddad and S. F. Awad. “How does population viral load vary with the evolution of a large HIV epidemic in sub-Saharan Africa?” In: AIDS 28.6 (2014), pp. 927–929.
    OpenUrl
  57. [57].
    S.-J. Anderson, P. Cherutich, N. Kilonzo, et al. “Maximising the effect of combination HIV prevention through prioritisation of the people and places in greatest need: A modelling study”. In: The Lancet 384.9939 (2014), pp. 249–256.
    OpenUrl
  58. [58].
    S. S. Alistar, E. F. Long, M. L. Brandeau, et al. “HIV epidemic control-a model for optimal allocation of prevention and treatment resources”. In: Health Care Management Science 17.2 (2014), pp. 162–181.
    OpenUrl
  59. [59].
    A. Cori, H. Ayles, N. Beyers, et al. “HPTN 071 (PopART): A cluster-randomized trial of the population impact of an HIV combination prevention intervention including universal testing and treatment: Mathematical model”. In: PLoS ONE 9.1 (2014), e84511.
    OpenUrlCrossRefPubMed
  60. [60].
    J. Stover, T. B. Hallett, Z. Wu, et al. “How Can We Get Close to Zero? The Potential Contribution of Biomedical Prevention and the Investment Framework towards an Effective Response to HIV”. In: PloS ONE 9.11 (2014), e111956.
    OpenUrl
  61. [61].
    A. L. Wirtz, C. Pretorius, C. Beyrer, et al. “Epidemic impacts of a community empowerment intervention for HIV prevention among female sex workers in generalized and concentrated epidemics”. In: PLoS ONE 9.2 (2014), e88047.
    OpenUrlCrossRefPubMed
  62. [62].
    E. L. Korenromp, B. Gobet, E. Fazito, et al. “Impact and cost of the HIV/AIDS national strategic plan for Mozambique, 2015-2019-projections with the spectrum/goals model”. In: PLoS ONE 10.11 (2015), e0142908.
    OpenUrl
  63. [63].
    G. M. Knight, P. J. Dodd, A. D. Grant, et al. “Tuberculosis Prevention in South Africa”. In: PLoS ONE 10.4 (2015), e0122514.
    OpenUrl
  64. [64].
    C. C. Kerr, R. M. Stuart, R. T. Gray, et al. “Optima: A Model for HIV Epidemic Analysis, Program Prioritization, and Resource Optimization”. In: Journal of Acquired Immune Deficiency Syndromes 69.3 (2015), pp. 365–376.
    OpenUrl
  65. [65].
    N. Fraser, C. C. Kerr, Z. Harouna, et al. “Reorienting the HIV response in Niger toward sex work interventions: From better evidence to targeted and expanded practice”. In: Journal of Acquired Immune Deficiency Syndromes 68.S2 (2015), S213–S220.
    OpenUrl
  66. [66].
    S. M. Kassa and A. Ouhinou. “The impact of self-protective measures in the optimal interventions for controlling infectious diseases of human population”. In: Journal of Mathematical Biology 70.1–2 (2015), pp. 213–236.
    OpenUrl
  67. [67].
    L.-G. Bekker, L. Johnson, F. Cowan, et al. “Combination HIV prevention for female sex workers: What is the evidence?” In: The Lancet 385.9962 (2015), pp. 72–87.
    OpenUrl
  68. [68].
    K. Shannon, S. A. Strathdee, S. M. Goldenberg, et al. “Global epidemiology of HIV among female sex workers: Influence of structural determinants”. In: The Lancet 3.5.9962 (2015), pp. 55–71.
    OpenUrl
  69. [69].
    S. Blaizot, B. Riche, D. Maman, et al. “Estimation and short-term prediction of the course of the HIV epidemic using demographic and health survey methodology-like data”. In: PLoS ONE 10.6 (2015), e0130387.
    OpenUrlCrossRef
  70. [70].
    J. A. Smith, S.-J. Anderson, K. L. Harris, et al. “Maximising HIV prevention by balancing the opportunities of today with the promises of tomorrow: a modelling study”. In: The Lancet HIV 3.7 (2016), e289–e296.
    OpenUrl
  71. [71].
    R. Atun, A. Y. Chang, O. Ogbuoji, et al. “Long-term financing needs for HIV control in sub-Saharan Africa in 2015-2050: a modelling study.” In: BMJ Open 6.3 (2016), e009656.
    OpenUrlAbstract/FREE Full Text
  72. [72].
    A. J. Shattock, C. C. Kerr, R. M. Stuart, et al. “In the interests of time: Improving HIV allocative efficiency modelling via optimal time-varying allocations”. In: Journal of the International AIDS Society 19.1 (2016), p. 20627.
    OpenUrl
  73. [73].
    J. B. McGillen, S.-J. Anderson, M. R. Dybul, et al. “Optimum resource allocation to reduce HIV incidence across sub-Saharan Africa: a mathematical modelling study”. In: The Lancet HIV 3.9 (2016), e441–e448.
    OpenUrl
  74. [74].
    L. F. Johnson, C. Chiu, L. Myer, et al. “Prospects for HIV control in South Africa: a model-based analysis”. In: Global Health Action 9 (2016), p. 30314.
    OpenUrl
  75. [75].
    M. Sharma, C. Farquhar, R. Ying, et al. “Modeling the cost-effectiveness of homebased HIV testing and education (HOPE) for pregnant women and their male partners in Nyanza Province, Kenya”. In: AIDS Research and Human Retroviruses 32.S1 (2016), p. 300.
    OpenUrl
  76. [76].
    G. Akudibillah, A. Pandey, and J. Medlock. “Maximizing the benefits of ART and PrEP in resource-limited settings”. In: Epidemiology and Infection 145.5 (2017), pp. 942–956.
    OpenUrl
  77. [77].
    R. A. Alsallaq, J. Buttolph, C. M. Cleland, et al. “The potential impact and cost of focusing HIV prevention on young women and men: A modeling analysis in western Kenya”. In: PLoS ONE 12.4 (2017), e0175447.
    OpenUrl
  78. [78].
    S.-J. Anderson, P. D. Ghys, R. Ombam, et al. “HIV prevention where it is needed most: Comparison of strategies for the geographical allocation of interventions: Comparison”. In: Journal of the International AIDS Society 20.4 (2017), e25020.
    OpenUrl
  79. [79].
    C. Chiu, L. F. Johnson, L. Jamieson, et al. “Designing an optimal HIV programme for South Africa: Does the optimal package change when diminishing returns are considered?” In: BMC Public Health 17.1 (2017), p. 143.
    OpenUrl
  80. [80].
    L. F. Johnson, M. T. May, R. E. Dorrington, et al. “Estimating the impact of antiretroviral treatment on adult mortality trends in South Africa: A mathematical modelling study”. In: PLoS Medicine 14.12 (2017), e1002468.
    OpenUrl
  81. [81].
    R. M. Stuart, C. C. Kerr, H. Haghparast-Bidgoli, et al. “Getting it right when budgets are tight: Using optimal expansion pathways to prioritize responses to concentrated and mixed HIV epidemics”. In: PLoS ONE 12.10 (2017), e0185077.
    OpenUrl
  82. [82].
    J. B. McGillen, A. Sharp, B. Honermann, et al. “Consequences of a changing US strategy in the global HIV investment landscape”. In: AIDS 31.18 (2017), F19–F23.
    OpenUrl
  83. [83].
    I. Cremin, L. McKinnon, J. Kimani, et al. “PrEP for key populations in combination HIV prevention in Nairobi: a mathematical modelling study”. In: The Lancet HIV 4.5 (2017), e214–e222.
    OpenUrl
  84. [84].
    J. M. Ross, R. Ying, C. L. Celum, et al. “Modeling HIV disease progression and transmission at population-level: The potential impact of modifying disease progression in HIV treatment programs.” In: Epidemics 23 (2018), pp. 34–41.
    OpenUrl
  85. [85].
    S.-J. Anderson, P. D. Ghys, R. Ombam, et al. “Frontloading HIV financing maximizes the achievable impact of hiv prevention”. In: Journal of the International AIDS Society 21.3 (2018), e25087.
    OpenUrl
  86. [86].
    S.-J. Anderson, G. P. Garnett, J. Enstone, et al. “The importance of local epidemic conditions in monitoring progress towards HIV epidemic control in Kenya: a modelling study”. In: Journal of the International AIDS Society 21.11 (2018), e25203.
    OpenUrl
  87. [87].
    E. O. Omondi, R. W. Mbogo, and L. S. Luboobi. “Mathematical analysis of sex-structured population model of HIV infection in Kenya”. In: Letters in Biomathematics 5.1 (2018), pp. 174–194.
    OpenUrl
  88. [88].
    B. Woods, C. Rothery, S.-J. Anderson, et al. “Appraising the value of evidence generation activities: an HIV modelling study.” In: BMJ Global Health 3.6 (2018), e000488.
    OpenUrlAbstract/FREE Full Text
  89. [89].
    E. R. Stevens, L. Li, K. A. Nucifora, et al. “Cost-effectiveness of a combination strategy to enhance the HIV care continuum in Swaziland: Link4health”. In: PLoS ONE 13.9 (2018), e0204245.
    OpenUrl
  90. [90].
    I. J. Stopard, J. B. McGillen, K. Hauck, et al. “The influence of constraints on the efficient allocation of resources for HIV prevention”. In: AIDS 33.7 (2019), pp. 1241–1246.
    OpenUrl
  91. [91].
    L. Beacroft and T. B. Hallett. “The potential impact of a “curative intervention” for HIV: a modelling study.” In: Global Health Research and Policy 4 (2019), p. 2.
    OpenUrl
  92. [92].
    M. Reidy, E. Gardiner, C. Pretorius, et al. “Evaluating the potential impact and cost-effectiveness of dapivirine vaginal ring pre-exposure prophylaxis for HIV prevention”. In: PLoS ONE 14.6 (2019), e0218710.
    OpenUrl
  93. [93].
    E. O. Omondi, R. W. Mbogo, and L. S. Luboobi. “A mathematical modelling study of HIV infection in two heterosexual age groups in Kenya”. In: Infectious Disease Modelling 4 (2019), pp. 83–98.
    OpenUrl
  94. [94].
    M. Maheu-Giroux, S. Diabate, M.-C. Boily, et al. “Cost-Effectiveness of Accelerated HIV Response Scenarios in Cote d’Ivoire”. In: Journal of Acquired Immune Deficiency Syndromes 80.5 (2019), pp. 503–512.
    OpenUrl
  95. [95].↵
    J. Vandepitte, R. Lyerla, G. Dallabetta, et al. “Estimates of the number of female sex workers in different regions of the world”. In: Sexually Transmitted Infections 82.S3 (June 2006).
  96. [96].↵
    M. Carael, E. Slaymaker, R. Lyerla, et al. “Clients of sex workers in different regions of the world: Hard to count”. In: Sexually Transmitted Infections 82.S3 (June 2006), pp. iii26–iii33.
    OpenUrlAbstract/FREE Full Text
  97. [97].↵
    F. Scorgie, M. F. Chersich, I. Ntaganira, et al. “Socio-demographic characteristics and behavioral risk factors of female sex workers in sub-Saharan Africa: A systematic review”. In: AIDS and Behavior 16.4 (May 2012), pp. 920–933.
    OpenUrlCrossRefPubMedWeb of Science
Back to top
Posted December 11, 2021.
Download PDF
Data/Code
Email
Risk heterogeneity in compartmental HIV transmission models of ART as prevention in Sub-Saharan Africa: A scoping review
Jesse Knight, Rupert Kaul, Sharmistha Mishra
medRxiv 2021.03.29.21254586; doi: https://doi.org/10.1101/2021.03.29.21254586
Twitter logo Facebook logo LinkedIn logo Mendeley logo
Citation Tools

Subject Area
