UV LED Wastewater Disinfection: The Future is Upon Us Full-scale installation and auditing of 280nm UV LED disinfection reactor

View ORCID ProfileSean A MacIsaac, View ORCID ProfileBailey Reid, View ORCID ProfileCarolina Ontiveros, View ORCID ProfileKarl G Linden, View ORCID ProfileAmina K Stoddart, View ORCID ProfileGraham A Gagnon
doi: https://doi.org/10.1101/2024.06.12.24308830
Sean A MacIsaac
aCentre for Water Resources Studies Dalhousie University Halifax NS, B3H 4R2, CAN
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Sean A MacIsaac
Bailey Reid
aCentre for Water Resources Studies Dalhousie University Halifax NS, B3H 4R2, CAN
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Bailey Reid
Carolina Ontiveros
aCentre for Water Resources Studies Dalhousie University Halifax NS, B3H 4R2, CAN
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Carolina Ontiveros
Karl G Linden
bDepartment of Civil, Environnmnetal, and Architectural Engineering University of Colorado Boulder Mortenson Center in Global Engineering
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Karl G Linden
Amina K Stoddart
aCentre for Water Resources Studies Dalhousie University Halifax NS, B3H 4R2, CAN
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Amina K Stoddart
Graham A Gagnon
aCentre for Water Resources Studies Dalhousie University Halifax NS, B3H 4R2, CAN
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for Graham A Gagnon
  • For correspondence: Graham.Gagnon{at}dal.ca
  • Abstract
  • Full Text
  • Info/History
  • Metrics
  • Data/Code
  • Preview PDF
Loading

Abstract

The world’s first full-scale, 280 nm UV LED reactor for wastewater disinfection was tested at flows of 545 and 817 m3 day-1. The system achieved a >3 average log reduction of total coliform at 545 m3 day-1 and the 817 m3 day-1 flow rate achieved over a >2.5 average log reduction for all operational conditions. The delivered fluence of the full-scale system ranged from 28-148 mJ cm-2 and aligns with a UV auditing study that was conducted prior to the installation of the wastewater reactor. These results benchmark the performance that can be achieved by UV LED disinfection and further connect bench-scale disinfection results with full-scale performance. The approach established in this manuscript provides a novel tool for utilities when considering emerging UV disinfection technologies. In summary, this study establishes that UV LEDs are an effective wastewater disinfectant at-scale and are comparable to conventional low-pressure UV systems. This is the first instance where the efficacy of UV LEDs for municipal wastewater disinfection has been demonstrated using a large-scale installation at a functioning wastewater facility.

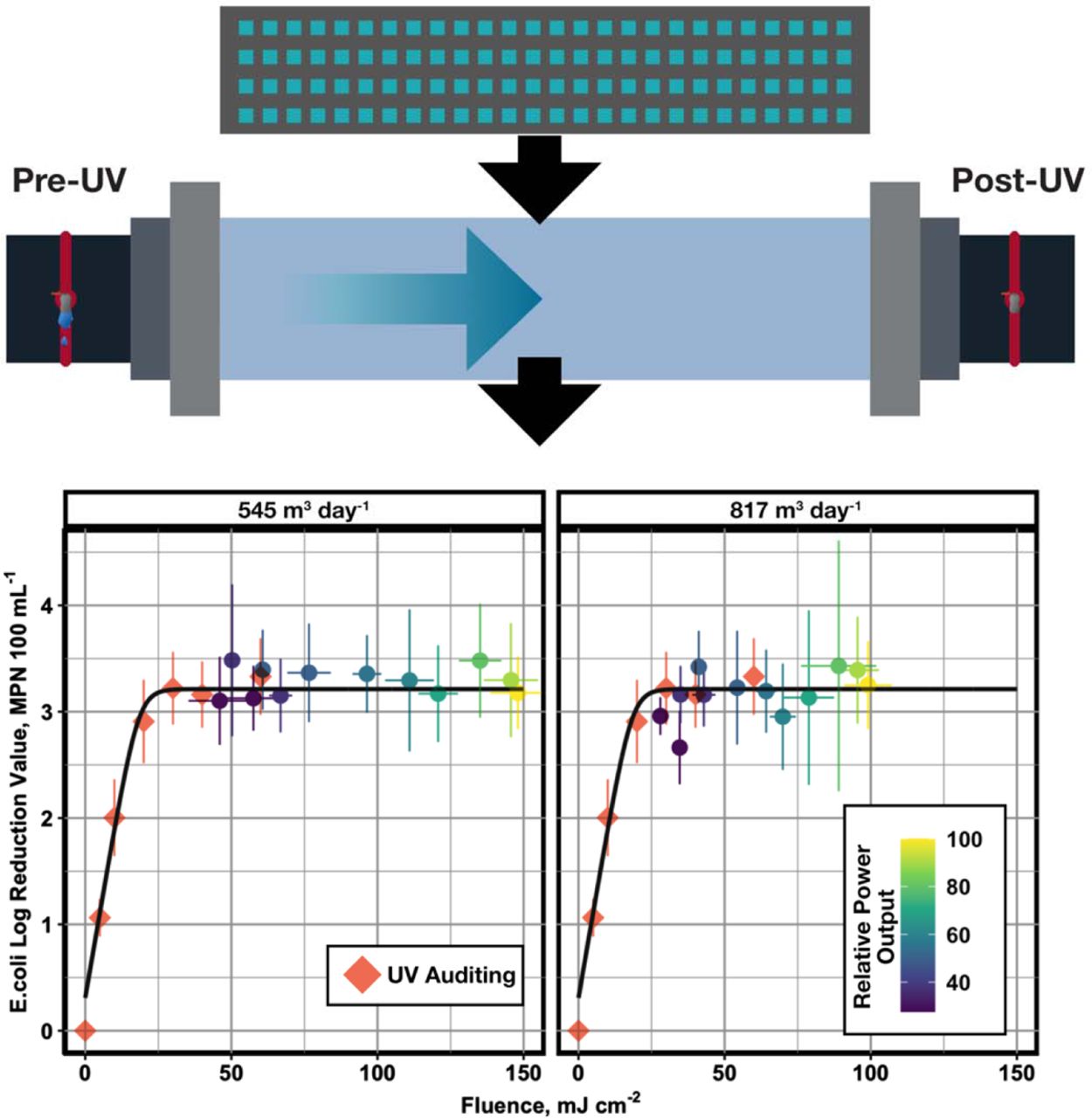

Figure
  • Download figure
  • Open in new tab

Competing Interest Statement

The authors have declared no competing interest.

Funding Statement

This study was funded by Water Research Foundation Project 5173

Author Declarations

I confirm all relevant ethical guidelines have been followed, and any necessary IRB and/or ethics committee approvals have been obtained.

Yes

I confirm that all necessary patient/participant consent has been obtained and the appropriate institutional forms have been archived, and that any patient/participant/sample identifiers included were not known to anyone (e.g., hospital staff, patients or participants themselves) outside the research group so cannot be used to identify individuals.

Yes

I understand that all clinical trials and any other prospective interventional studies must be registered with an ICMJE-approved registry, such as ClinicalTrials.gov. I confirm that any such study reported in the manuscript has been registered and the trial registration ID is provided (note: if posting a prospective study registered retrospectively, please provide a statement in the trial ID field explaining why the study was not registered in advance).

Yes

I have followed all appropriate research reporting guidelines, such as any relevant EQUATOR Network research reporting checklist(s) and other pertinent material, if applicable.

Yes

Data Availability

All data produced in the present study are available upon reasonable request to the authors

Copyright
The copyright holder for this preprint is the author/funder, who has granted medRxiv a license to display the preprint in perpetuity. All rights reserved. No reuse allowed without permission.
